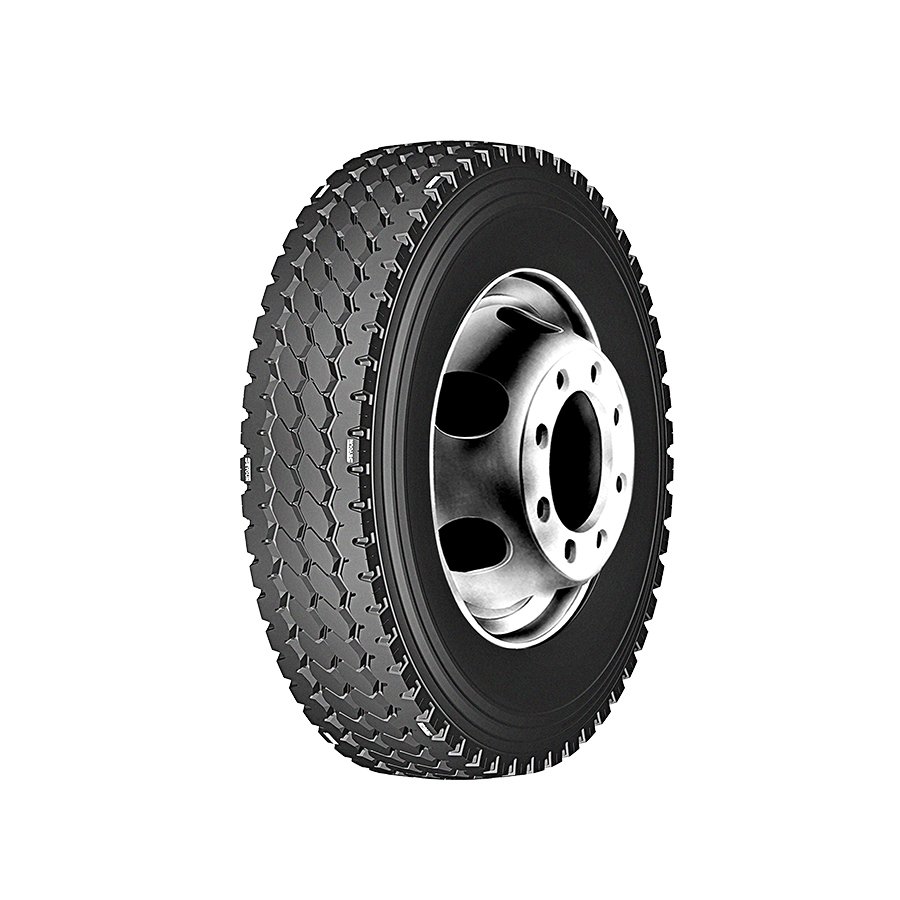

SYT805
Product introduction：
• Excellent traction and better self-clean in soft soil and mud thanks to the deep grooves and the open tire shoulder.
• Outstanding durability due to the strengthened tire carcass prevents irregular wear and provides longer mileage.
• Long lifespan thanks to the heat-resistance compound that reduces the heatbuilding in critical conditions of on/off road.
Product Details
Product data
| Pattern No. | Size | PR | LL/SS | Overall diameter (mm) | Load capacity(kg) | Inflation pressure(kpa) | Section width (mm) | Standard rim(inch) | Tread width（mm） | Tread depth (mm) | |
| Single | Dual | ||||||||||
| SYT805 | 13R22.5 | 18PR | 154/151K | 1124 | 3750 | 3450 | 850 | 320 | 9.75 | 242 | 18.5 |
| SYT805 | 12.00R20 | 20PR | 156/153M | 1125 | 4000 | 3650 | 900 | 315 | 8.50 | 240 | 17.5 |
| SYT805 | 11.00R20 | 18PR | 152/149K | 1085 | 3550 | 3250 | 930 | 293 | 8.00 | 226 | 16.5 |
| SYT805 | 10.00R20 | 18PR | 149/146K | 1054 | 3250 | 3000 | 930 | 278 | 7.50 | 230 | 18.5 |
| SYT805 | 7.00R16LT | 14PR | 118/114L | 774 | 1320 | 1180 | 770 | 200 | 5.50 | 160 | 13.0 |
| SYT805 | 7.50R16LT | 16PR | 125/121L | 805 | 1500 | 1320 | 770 | 216 | 6.00 | 176 | 14.5 |
| SYT805 | 8.25R16LT | 18PR | 132/128L | 854 | 1800 | 1600 | 770 | 236 | 6.50 | 185 | 15.5 |
| SYT805 | 9.00R20 | 16PR | 144/142K | 1019 | 2800 | 2650 | 900 | 259 | 7.00 | 220 | 17.5 |
