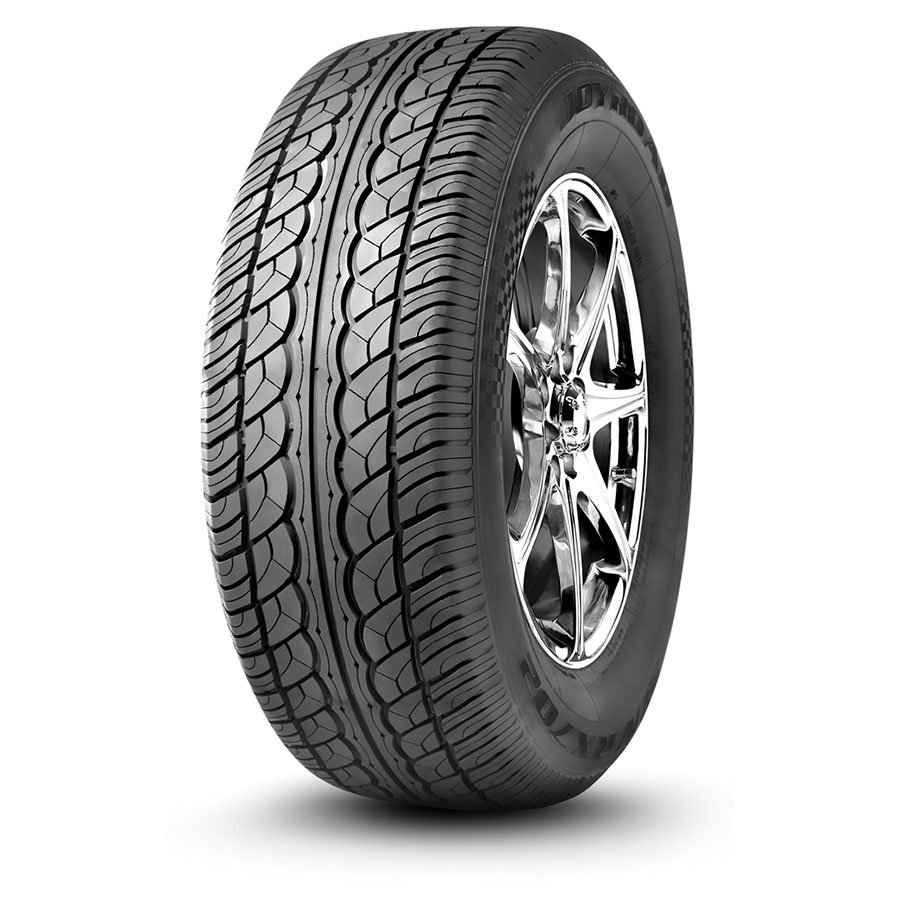

SUV RX702
Product data
| SIZE | LOAD INDEX | SPEED RANGE | STANDARD RIM | SECTION WIDTH (MM) | OVERALL DIAMETER (MM) | MAX LAOD | MAX PRESSURE | TREAD DEPTH (MM) | ||
| KG | LBS | KPa | PSI | |||||||
| 205/70R15 | 96 | H | 6J | 209 | 669 | 710 | 1565 | 300 | 44 | 7.8 |
| 255/70R15 | 108 | H | 7 1/2J | 260 | 739 | 1000 | 2204 | 300 | 44 | 7.8 |
| 215/65R16 | 98 | H | 6 1/2J | 221 | 686 | 750 | 1653 | 300 | 44 | 7.8 |
| 235/60R16 | 100 | H | 7J | 240 | 688 | 800 | 1764 | 300 | 44 | 7.8 |
| 245/70R16 | 107 | H | 7J | 248 | 750 | 975 | 2149 | 300 | 44 | 7.8 |
| 265/70R16 | 112 | H | 8J | 272 | 778 | 1120 | 2469 | 300 | 44 | 7.8 |
| 275/70R16 | 114 | H | 8J | 279 | 792 | 1180 | 2601 | 300 | 44 | 7.8 |
| 215/60R17 | 96 | H | 6 1/2J | 232 | 684 | 710 | 1565 | 300 | 44 | 8 |
| 225/60R17 | 99 | V | 6 1/2J | 228 | 702 | 775 | 1709 | 300 | 44 | 7.8 |
| 225/65R17 | 102 | V | 6 1/2J | 228 | 724 | 850 | 1874 | 300 | 44 | 7.8 |
| 235/55R17 | 99 | H | 7 1/2J | 245 | 690 | 775 | 1709 | 300 | 44 | 7.8 |
| 235/60R17 | 102 | V | 7J | 240 | 714 | 850 | 1874 | 300 | 44 | 7.8 |
| 235/65R17 | 104 | V | 7J | 240 | 738 | 900 | 1984 | 300 | 44 | 7.8 |
| 245/65R17 | 107 | H | 7J | 248 | 750 | 975 | 2149 | 300 | 44 | 7.8 |
| 265/65R17 | 112 | H | 8J | 272 | 776 | 1120 | 2469 | 300 | 44 | 7.8 |
| 275/55R17 | 109 | V | 8 1/2J | 284 | 734 | 1030 | 2271 | 300 | 44 | 7.8 |
| 275/65R17 | 115 | H | 8J | 279 | 790 | 1215 | 2679 | 300 | 44 | 7.8 |
| 285/65R17 | 116 | H | 8 1/2J | 292 | 802 | 1250 | 2756 | 300 | 44 | 7.8 |
| 215/55R18 | 95 | V | 7J | 226 | 693 | 690 | 1521 | 300 | 44 | 7.8 |
| 235/55ZR18 | 104 XL | W | 7 1/2J | 245 | 715 | 900 | 1984 | 340 | 50 | 7.8 |
| 235/60R18 | 107 XL | V | 7J | 240 | 739 | 975 | 2149 | 340 | 50 | 7.8 |
| 255/55ZR18 | 109 XL | W | 8J | 265 | 737 | 1030 | 2271 | 340 | 50 | 7.8 |
| 255/60R18 | 112 XL | V | 7 1/2J | 260 | 763 | 1120 | 2469 | 340 | 50 | 7.8 |
| 245/55ZR19 | 103 | W | 7 1/2J | 253 | 753 | 875 | 1929 | 300 | 44 | 7.8 |
| 255/50ZR19 | 107 XL | W/Y | 8J | 265 | 739 | 975 | 2149 | 340 | 50 | 7.8 |
| 255/55ZR19 | 111 XL | W | 8J | 265 | 763 | 1090 | 2403 | 340 | 50 | 7.8 |
| 245/35ZR20 | 95 XL | W/Y | 8 1/2J | 248 | 680 | 690 | 1521 | 340 | 50 | 7.8 |
| 255/35ZR20 | 97 XL | W/Y | 9J | 260 | 686 | 730 | 1609 | 340 | 50 | 7.8 |
