WINTER RX818
Product Details

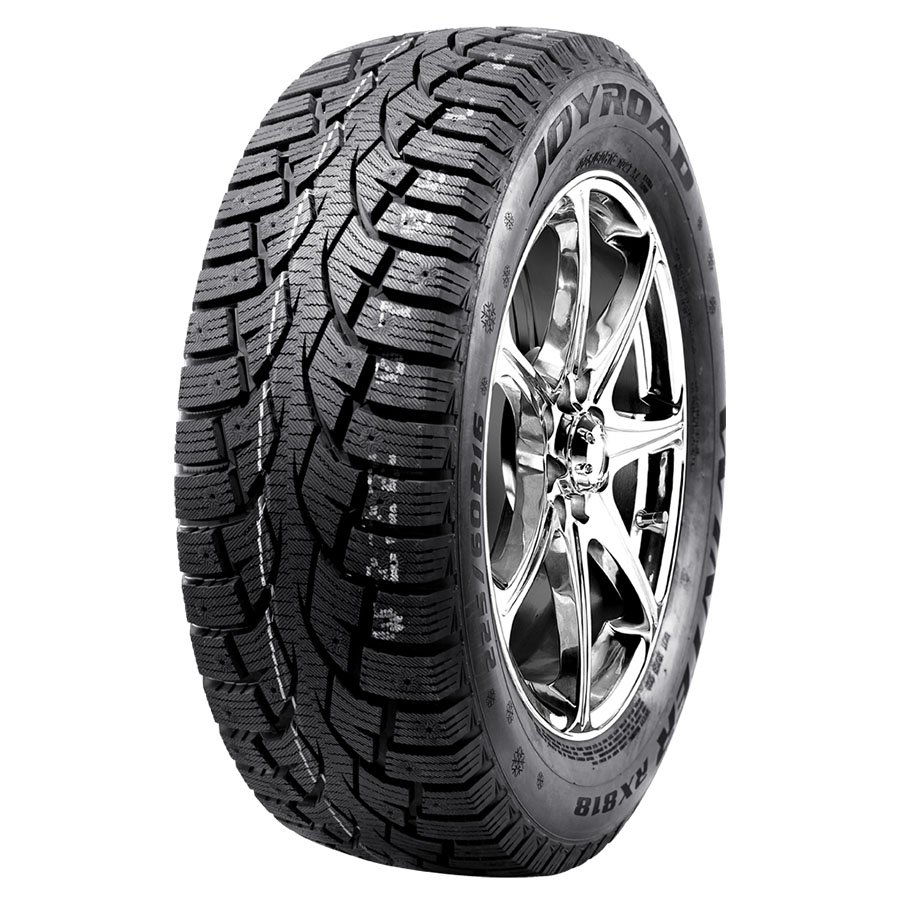

Studded Tire Specifically for Snowy Terrains
1、Serrated design in the outside main groove assures high grip and braking force on ICE&S NOW covered surfaces.
2、Deep and densely distributed grooves and steel sheet helps soften the tread, contributes to shorten braking distance on ice covered surface.
Product data
| SIZE | LOAD INDEX | SPEED RANGE | STANDARD RIM | SECTION WIDTH (MM) | OVERALL DIAMETER (MM) | MAX LAOD | MAX PRESSURE | TREAD DEPTH (MM) | ||
| KG | LBS | KPa | PSI | |||||||
| 175/70R13 | 82 | T | 5J | 177 | 576 | 475 | 1047 | 300 | 44 | 9.9 |
| 175/65R14 | 82 | T | 5J | 177 | 584 | 475 | 1047 | 300 | 44 | 9.9 |
| 185/65R14 | 90 XL | T | 5 1/2J | 189 | 596 | 600 | 1323 | 340 | 50 | 9.9 |
| 185/65R15 | 88 | T | 5 1/2J | 189 | 621 | 560 | 1235 | 300 | 44 | 9.9 |
| 195/60R15 | 88 | T | 6J | 201 | 615 | 560 | 1235 | 300 | 44 | 9.9 |
| 195/65R15 | 91 | T | 6J | 201 | 635 | 615 | 1356 | 300 | 44 | 9.9 |
| 205/65R15 | 94 | T | 6J | 209 | 647 | 670 | 1477 | 300 | 44 | 9.9 |
| 205/70R15 | 96 | T | 6J | 209 | 669 | 710 | 1565 | 300 | 44 | 9.9 |
| 215/70R15 | 98 | T | 6 1/2J | 221 | 683 | 750 | 1653 | 300 | 44 | 9.9 |
| 205/55R16 | 91 | T | 6 1/2J | 214 | 632 | 615 | 1356 | 300 | 44 | 9.9 |
| 205/55R16 | 94 XL | T | 7J | 214 | 632 | 670 | 1477 | 340 | 50 | 9.9 |
| 205/60R16 | 92 | T | 6J | 209 | 652 | 630 | 1389 | 300 | 44 | 9.9 |
| 215/60R16 | 95 | T | 6 1/2J | 221 | 664 | 690 | 1521 | 300 | 44 | 9.9 |
| 215/65R16 | 98 | T | 6 1/2J | 221 | 686 | 750 | 1653 | 300 | 44 | 9.9 |
| 215/70R16 | 100 | T | 6 1/2J | 221 | 708 | 800 | 1764 | 300 | 44 | 10.7 |
| 225/60R16 | 102 XL | T | 6 1/2J | 228 | 676 | 850 | 1874 | 340 | 50 | 9.9 |
| 235/70R16 | 109 XL | T | 7J | 240 | 736 | 1030 | 2271 | 340 | 50 | 10.7 |
| 225/65R17 | 102 | T | 6 1/2J | 228 | 724 | 850 | 1874 | 300 | 44 | 10.7 |
| 235/65R17 | 104 | T | 7J | 240 | 738 | 900 | 1984 | 300 | 44 | 10.7 |
| 245/45R17 | 95 | T | 8J | 243 | 652 | 690 | 1521 | 300 | 44 | 9.9 |
| 265/70R17 | 115 | T | 8J | 272 | 804 | 1215 | 2679 | 300 | 44 | 10.7 |
| SIZE | LOAD INDEX | SPEED RANGE | PLY | STANDARD RIM | SECTION WIDTH (MM) | OVERALL DIAMETER (MM) | MAX LAOD SINGLE | MAX LOAD DOUBLE | MAX PRESSURE | TREAD DEPTH (MM) | |||
| KG | LBS | KG | LBS | KPa | PSI | ||||||||
| LT245/75R16 | 120/116 | Q | 10PR | 7J | 248 | 774 | 1380 | 3040 | 1260 | 2780 | 550 | 80 | 13.1 |
| LT265/70R17 | 121/118 | Q | 10PR | 8J | 272 | 804 | 1450 | 3195 | 1320 | 2910 | 550 | 80 | 13.1 |
