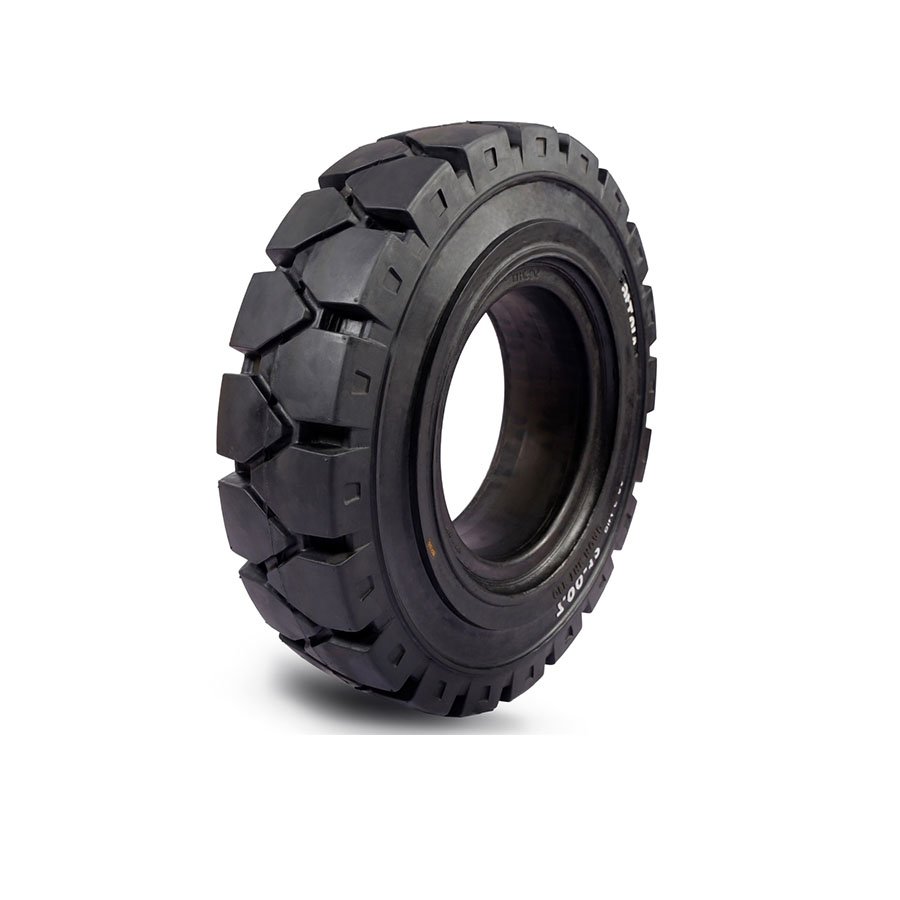

Forklift Solid Tyre
Product Details
1、Deep tread pattern, high load, large ground contact acreage, strong traction, excellent wear-resistance;
2、litter rolling resistance, low heat generating, little energy conservation, strong rockfall resistance;
3、high quality raw material support and unique formula design,the tyre enjoys outstanding performance at all aspects.

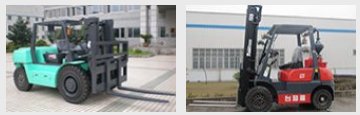

4、It is the best choice for balanced forklift and other industrial vehicles.
Product data
| Size | Rim | O.D (mm) | S.W(mm) | Max.Load(Kg) | ||||||
| Balanced forklift | Other Industrial | |||||||||
| 10km/h | 16km/h | 25km/h | ||||||||
| ±5mm | ±5mm | Drive | Steer | Drive | Steer | Drive | Steer | 25km/h | ||
| 400-8 | 3.00D/3.75 | 410.00 | 115.00 | 910 | 700 | 830 | 640 | 765 | 590 | 590 |
| 5.00-8 | 3.00D | 466.00 | 127.00 | 1255 | 965 | 1145 | 880 | 1060 | 815 | 815 |
| 5.50-15 | 4.50E | 666.00 | 144.00 | 2525 | 1870 | 2415 | 1790 | 2195 | 1625 | 1495 |
| 6.00-9 | 4.00E | 533.22 | 140.00 | 1975 | 1520 | 1805 | 1390 | 1675 | 1290 | 1290 |
| 6.00-15 | 4.50E | 694.00 | 148.00 | 2830 | 2095 | 2705 | 2000 | 2455 | 1820 | 1675 |
| 6.50-10 | 5.00F | 582.47 | 157.30 | 2715 | 2090 | 2485 | 1910 | 2310 | 1775 | 1775 |
| 7.00-12 | 5.00S | 663.14 | 163.27 | 3105 | 2390 | 2835 | 2180 | 2635 | 2025 | 2025 |
| 7.00-15 | 5.50S/6.00 | 737.67 | 177.60 | 3700 | 2845 | 3375 | 2595 | 3135 | 2410 | 2410 |
| 7.50-16 | 6.00 | 805.00 | 180.00 | 4400 | 3385 | 4025 | 3095 | 3730 | 2870 | 2870 |
| 8.25-15 | 6.50 | 829.04 | 202.00 | 5085 | 3910 | 4640 | 3570 | 4310 | 3315 | 3315 |
| 15x4 1/2-8 | 3.00D | 383.00 | 106.60 | 1005 | 775 | 915 | 705 | 850 | 655 | 655 |
| 16*6-8 | 4.33R | 416.00 | 156.00 | 1545 | 1190 | 1410 | 1085 | 1305 | 1005 | 1005 |
| 18x7-8 | 4.33R | 452.00 | 154.80 | 2430 | 1870 | 2215 | 1705 | 2060 | 1585 | 1585 |
| 18x7-9 | 4.33R | 452.00 | 154.80 | 2230 | 1780 | 2150 | 1615 | 2005 | 1505 | 1540 |
| 21*8-9 | 6.00E | 523.00 | 180.00 | 2890 | 2225 | 2645 | 2035 | 2455 | 1890 | 1890 |
| 23x9-10 | 6.50F | 594.68 | 211.66 | 3730 | 2870 | 3405 | 2620 | 3160 | 2430 | 2430 |
| 23*10-12 | 8.00G | 592.00 | 230.00 | 4450 | 3425 | 4060 | 3125 | 3770 | 2900 | 2900 |
| 27*10-12 | 8.00G | 680.00 | 236.00 | 4595 | 3535 | 4200 | 3230 | 3900 | 3000 | 3000 |
| 28*9-15 | 7.00 | 700.00 | 230.00 | 4060 | 3125 | 3710 | 2855 | 3445 | 2650 | 2650 |
| 28*12.5-15 | 9.75 | 706.00 | 300.00 | 6200 | 4770 | 5660 | 4355 | 5260 | 4045 | 4045 |
| 140/55-9 | 4.00E | 380.00 | 130.00 | 1380 | 1060 | 1260 | 970 | 1170 | 900 | 900 |
| 200/50-10 | 6.50 | 457.56 | 198.04 | 2910 | 2240 | 2665 | 2050 | 2470 | 1900 | 1900 |
| 250-15 | 7.00/7.50 | 726.41 | 235.00 | 5595 | 4305 | 5110 | 3930 | 4745 | 3650 | 3650 |
| 300-15 | 8.00 | 827.02 | 256.00 | 6895 | 5305 | 6300 | 4845 | 5850 | 4500 | 4500 |
| 355/65-15 | 9.75 | 825.00 | 301.70 | 7800 | 5800 | 7080 | 5310 | 6000 | 4800 | 5450 |
