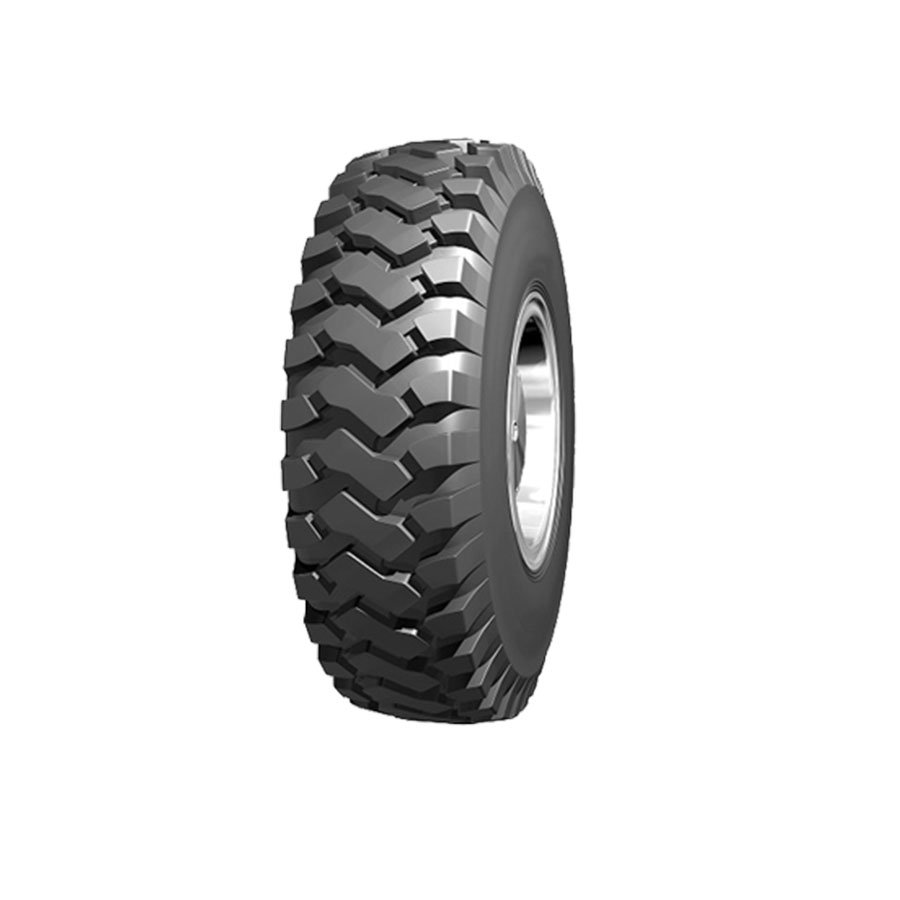

Solid OTR Tyre E3 & E4
Product Details
High loading, low rolling resistance, lower energy consumption, higher wear and antipuncture resistance, no exploding, lower cost of maintenance, such kind of tire is widely used on the special vehicle of port, mine metallurgical industry.
Product data
| Parameter table | ||||||||||
| SIZE | Rim | O.D.(mm) | S.W.(mm) | Max. Load(Kg) | ||||||

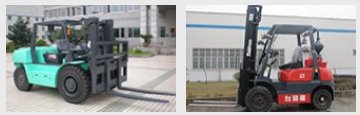

| Balanced forklift | Other Industrial Vehicles | |||||||||
| 10km/h | 16km/h | 25km/h | ||||||||
| ±5mm | ±5mm | Drive | Steer | Drive | Steer | Drive | Steer | 25km/h | ||
| 8.25-20 | 6.50T/7.00 | 976 | 216.64 | 5335 | 4445 | 4870 | 4060 | 4525 | 3770 | 3770 |
| 9.00-16 | 6.00/6.50/7.00 | 880 | 211.73 | 5290 | 4070 | 4830 | 3715 | 4485 | 3450 | 3450 |
| 9.00-20 | 7.00/7.50 | 1005 | 236 | 6365 | 5305 | 5815 | 4845 | 5400 | 4500 | 4500 |
| 10.00-20 | 7.00/7.50 | 1041 | 248 | 7075 | 5895 | 6460 | 5385 | 6000 | 5000 | 5000 |
| 10.00-20 SM | 7.5 | 1041 | 248 | 7075 | 5895 | 6460 | 5385 | 6000 | 5000 | 5000 |
| 11.00-20 | 7.70/8.00 | 1057.9 | 270 | 7715 | 6430 | 7045 | 5870 | 6540 | 5450 | 5450 |
| 12.00-20 | 8.00/8.50 | 1112 | 285 | 8920 | 7435 | 8140 | 6785 | 7560 | 6300 | 6300 |
| 12.00-24 | 8.5 | 1218 | 300 | 9125 | 7605 | 8335 | 6945 | 7740 | 6450 | 6450 |
| 14.00-20 ST | 10 | 1250 | 316 | 10800 | 8640 | 10430 | 7840 | 9730 | 7315 | 7450 |
| 14.00-24 | 10 | 1340 | 328 | 12165 | 10135 | 11105 | 9255 | 10315 | 8595 | 8595 |
| 16.00-25 | 11.25 | 1446 | 390 | 16860 | 13490 | 15170 | 11400 | 13480 | 10130 | 12130 |
| 17.5-25 | 14 | 1368 | 458 | 17720 | 14180 | 16880 | 12690 | 15960 | 12000 | 12220 |
| 23.5-25 | 19.5 | 1620 | 580 | 30830 | 24660 | 29790 | 22400 | 27770 | 20880 | 21260 |
| 26.5-25 | 22 | 1736 | 650 | 39300 | 31400 | 37400 | 28100 | 35400 | 26600 | 27100 |
