Press on Solid Tire
Product Details

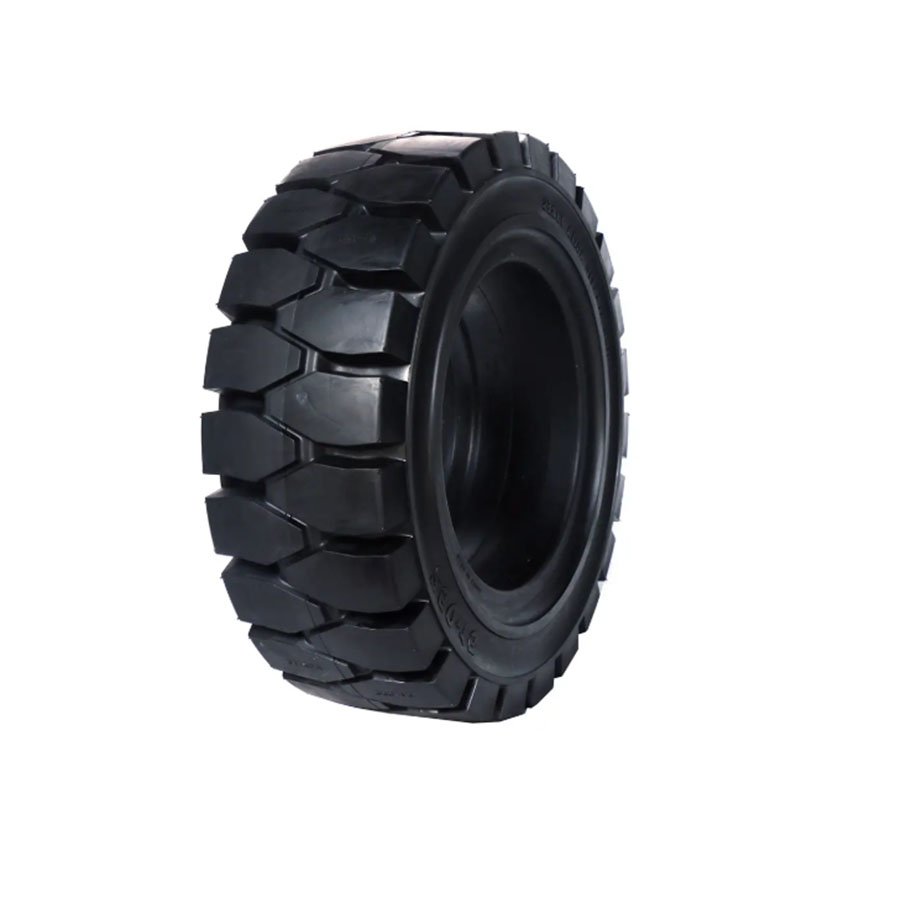

Press On Solid Tyre, Smooth Tread
For each size we also have TR tyre and non marking white tyre as request.
It has characteristics as follows:
1. Low barycenter
2. Lower energy consumption
3. Anti-puncture
4. Lower maintenance cost
5. higher density of rubber
6. Higher wear resistance
7. Good stability
8. Tire base is made to combine with steel wheel very tightly so as to avoid peeling off between them.
Product data
| Size of Tire | Types of Pattern | Net Weight(Kg) | Max Load (Kg) | |||||
| Inch | Millmeter | Counter Balance Lift Trucks | Other Industrial Vehicles | |||||
| 10km/h | 16km/h | |||||||
| (in) | (mm) | ±1.5%kg | Driving | Steering | Driving | Steering | 16km/h | |
| 9x5x5 | 228.6x127x127 | SM | 6.5 | 890 | 790 | 785 | 715 | 685 |
| 10x4x6 1/2 | 254x101.6x165.1 | SM | 6 | 720 | 640 | 635 | 580 | 555 |
| 10x5x6 1/2 | 254x127x165.1 | SM | 7.4 | 940 | 835 | 830 | 755 | 725 |
| 10x6x6 1/2 | 254x152.4x165.1 | SM | 9 | 1160 | 1035 | 1030 | 935 | 895 |
| 10 1/2x5x5 | 266.7x127x127 | SM | 8 | 1020 | 910 | 905 | 820 | 785 |
| 10 1/2x6x5 | 266.7x152.4x127 | SM | 10.4 | 1295 | 1155 | 1145 | 1040 | 995 |
| 10 1/2x5x6 1/2 | 266.7x127x165.1 | SM | 8.2 | 1000 | 890 | 885 | 805 | 770 |
| 10 1/2x6x6 1/2 | 266.7x152.4x165.1 | SM | 9.6 | 1240 | 1105 | 1100 | 995 | 955 |
| 12x4 1/2x8 | 304.8x114.3x203.2 | SM | 8.6 | 970 | 865 | 860 | 780 | 745 |
| 13 1/2x5 1/2x8 | 342.9x139.7x203.2 | SM | 13 | 1400 | 1245 | 1235 | 1125 | 1075 |
| 14x4 1/2x8 | 355.6x114.3x203.2 | SM/TR | 12.2 | 1085 | 965 | 960 | 870 | 835 |
| 15x5x11 1/4 | 381x127x285.8 | SM | 12.6 | 1290 | 1150 | 1145 | 1040 | 995 |
| 15 1/2x5x10 | 393.7x127x254 | SM | 14 | 1365 | 1215 | 1210 | 1100 | 1050 |
| 15 1/2x6x10 | 393.7x152.4x254 | SM | 16.8 | 1735 | 1545 | 1535 | 1395 | 1335 |
| 16×5×10 1/2 | 406.4×127×266.7 | SM | 16 | 1400 | 1245 | 1240 | 1125 | 1075 |
| 16×6×10 1/2 | 406.4×152.4×266.7 | SM | 19.27 | 1775 | 1580 | 1570 | 1430 | 1365 |
| 16×7×101/2 | 406.4×178.8×266.7 | SM | 21.1 | 2155 | 1915 | 1905 | 1730 | 1655 |
| 16 1/4x5x11 1/4 | 412.8x127x285.8 | SM/TR | 14.6 | 1415 | 1260 | 1250 | 1135 | 1090 |
| 16 1/4x6x11 1/4 | 412.8x152.4x285.8 | SM/TR | 17.6 | 1780 | 1585 | 1575 | 1480 | 1370 |
| 16 1/4x7x11 1/4 | 412.8x177.8x285.8 | SM | 20 | 2150 | 1915 | 1900 | 1730 | 1655 |
| 17x5x12 1/8 | 431.8x127x308 | SM | 16 | 1460 | 1300 | 1295 | 1175 | 1125 |
| 18x5x12 1/8 | 457.2x127x308 | SM/TR | 18 | 1525 | 1355 | 1350 | 1225 | 1175 |
| 18×6×12 1/8 | 457×152×308 | SM | 23.5 | 1945 | 1735 | 1720 | 1565 | 1500 |
| 18×7×12 1/8 | 457×178×308 | SM | 28.03 | 2370 | 2110 | 2095 | 1905 | 1820 |
| 18×8×12 1/8 | 457×203.2×308 | SM | 30.1 | 2790 | 2485 | 2470 | 2245 | 2145 |
| 18x9x12 1/8 | 457.2x228.6x308 | SM/TR | 32 | 3215 | 2860 | 2840 | 2580 | 2470 |
| 20x8x16 | 508x203.2x406.4 | SM/TR | 28.4 | 2795 | 2490 | 2475 | 2250 | 2150 |
| 21×7×15 | 533.4×178.8×381 | SM/TR | 33.6 | 2665 | 2370 | 2355 | 2140 | 2050 |
| 21×8×15 | 533.4×203.2×381 | SM | 38.6 | 3140 | 2795 | 2780 | 2525 | 2415 |
| 21x9x15 | 533.4x228.6x381 | SM | 41 | 3620 | 3220 | 3200 | 2910 | 2785 |
| 22x8x16 | 558.8x203.2x406.4 | SM/TR | 38 | 3255 | 2895 | 2880 | 2615 | 2500 |
| 22*9*16 | 559×229×406 | SM | 43 | 3745 | 3335 | 3315 | 3010 | 2880 |
| 22×12×16 | 559×305×406 | SM | 62 | 5230 | 4655 | 4625 | 4205 | 4025 |
| 26×10 | 660×250(×480) | SM | 68 | 4810 | 4290 | 4580 | 4240 | 3700 |
| 28×12×22 | 711×304×558.8 | SM | 79.3 | 6265 | 5575 | 5545 | 5035 | 4820 |
| 28x16x22 | 711.2x406.4x558.8 | SM | 110 | 8635 | 7685 | 7640 | 6940 | 6645 |
