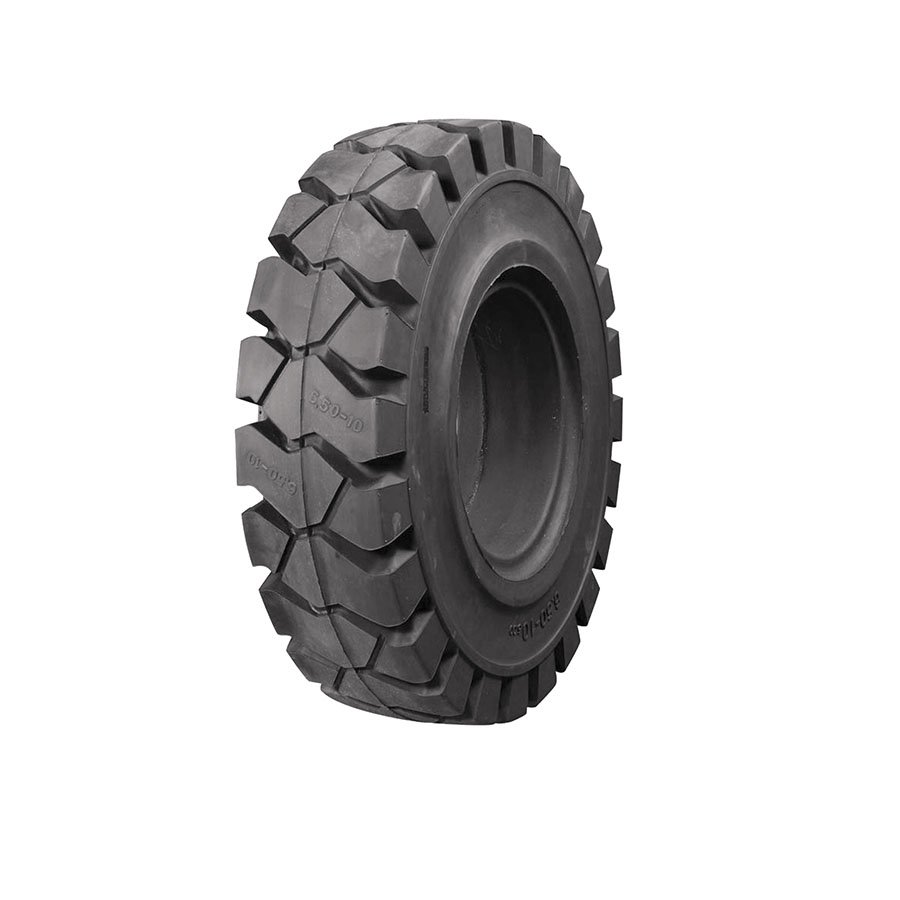

1、The resilient tires are compatible with the standard rims of pneumatic tires, so they can replace pneumatic tires without changing rims.
2、It has such advantages like Deep tread pattern, high load, large ground contact acreage, strong traction, excellent wear-resistance,litter rolling resistance, low heat generating, little energy conservation, strong rockfall resistance;high quality raw material support and unique formula design,the tyre enjoys outstanding performance at all aspects.
3、It is the ideal replacement of pneumatic tire in the fields of low speed, high load circumstances. Cushion rubber center provides good shock absorption, reducing damage and improves ride. High strength base rubber and steel reinforce base provides absolute rim adherence.

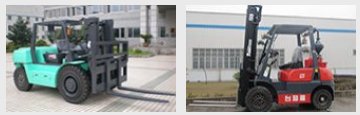

4、It is the best choice for balanced forklift and other industrial vehicles.
| Size | Rim | O.D (mm) | S.W(mm) | Max.Load(Kg) | ||||||
| Balanced forklift | Other Industrial | |||||||||
| 10km/h | 16km/h | 25km/h | ||||||||
| ±5mm | ±5mm | Drive | Steer | Drive | Steer | Drive | Steer | 25km/h | ||
| 400-8 | 3.00D/3.75 | 410.00 | 115.00 | 910 | 700 | 830 | 640 | 765 | 590 | 590 |
| 5.00-8 | 3.00D | 466.00 | 127.00 | 1255 | 965 | 1145 | 880 | 1060 | 815 | 815 |
| 5.50-15 | 4.50E | 666.00 | 144.00 | 2525 | 1870 | 2415 | 1790 | 2195 | 1625 | 1495 |
| 6.00-9 | 4.00E | 533.22 | 140.00 | 1975 | 1520 | 1805 | 1390 | 1675 | 1290 | 1290 |
| 6.00-15 | 4.50E | 694.00 | 148.00 | 2830 | 2095 | 2705 | 2000 | 2455 | 1820 | 1675 |
| 6.50-10 | 5.00F | 582.47 | 157.30 | 2715 | 2090 | 2485 | 1910 | 2310 | 1775 | 1775 |
| 7.00-12 | 5.00S | 663.14 | 163.27 | 3105 | 2390 | 2835 | 2180 | 2635 | 2025 | 2025 |
| 7.00-15 | 5.50S/6.00 | 737.67 | 177.60 | 3700 | 2845 | 3375 | 2595 | 3135 | 2410 | 2410 |
| 7.50-16 | 6.00 | 805.00 | 180.00 | 4400 | 3385 | 4025 | 3095 | 3730 | 2870 | 2870 |
| 8.25-15 | 6.50 | 829.04 | 202.00 | 5085 | 3910 | 4640 | 3570 | 4310 | 3315 | 3315 |
| 15x4 1/2-8 | 3.00D | 383.00 | 106.60 | 1005 | 775 | 915 | 705 | 850 | 655 | 655 |
| 16*6-8 | 4.33R | 416.00 | 156.00 | 1545 | 1190 | 1410 | 1085 | 1305 | 1005 | 1005 |
| 18x7-8 | 4.33R | 452.00 | 154.80 | 2430 | 1870 | 2215 | 1705 | 2060 | 1585 | 1585 |
| 18x7-9 | 4.33R | 452.00 | 154.80 | 2230 | 1780 | 2150 | 1615 | 2005 | 1505 | 1540 |
| 21*8-9 | 6.00E | 523.00 | 180.00 | 2890 | 2225 | 2645 | 2035 | 2455 | 1890 | 1890 |
| 23x9-10 | 6.50F | 594.68 | 211.66 | 3730 | 2870 | 3405 | 2620 | 3160 | 2430 | 2430 |
| 23*10-12 | 8.00G | 592.00 | 230.00 | 4450 | 3425 | 4060 | 3125 | 3770 | 2900 | 2900 |
| 27*10-12 | 8.00G | 680.00 | 236.00 | 4595 | 3535 | 4200 | 3230 | 3900 | 3000 | 3000 |
| 28*9-15 | 7.00 | 700.00 | 230.00 | 4060 | 3125 | 3710 | 2855 | 3445 | 2650 | 2650 |
| 28*12.5-15 | 9.75 | 706.00 | 300.00 | 6200 | 4770 | 5660 | 4355 | 5260 | 4045 | 4045 |
| 140/55-9 | 4.00E | 380.00 | 130.00 | 1380 | 1060 | 1260 | 970 | 1170 | 900 | 900 |
| 200/50-10 | 6.50 | 457.56 | 198.04 | 2910 | 2240 | 2665 | 2050 | 2470 | 1900 | 1900 |
| 250-15 | 7.00/7.50 | 726.41 | 235.00 | 5595 | 4305 | 5110 | 3930 | 4745 | 3650 | 3650 |
| 300-15 | 8.00 | 827.02 | 256.00 | 6895 | 5305 | 6300 | 4845 | 5850 | 4500 | 4500 |
| 355/65-15 | 9.75 | 825.00 | 301.70 | 7800 | 5800 | 7080 | 5310 | 6000 | 4800 | 5450 |
