AX201S E-2 L-2
Product introduction：

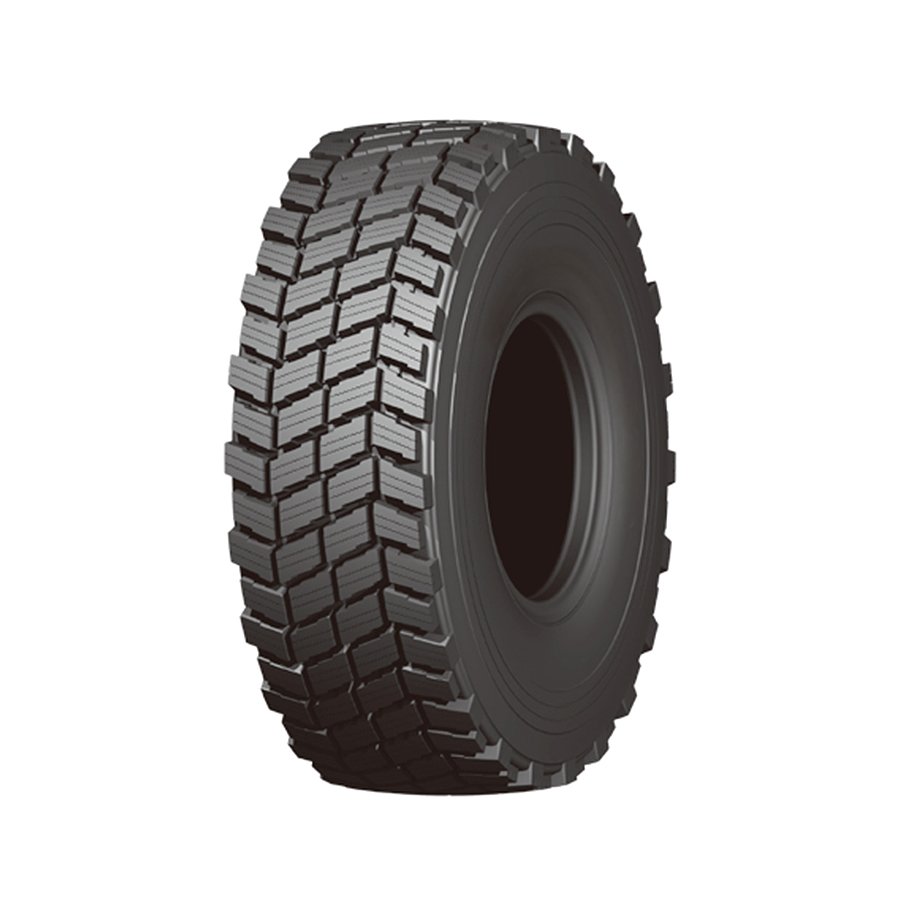

Pattern name: AX201S
Pattern model: E-2/L-2 RADIAL
Purpose: Grader/loader and earthmover
Product Details
1.Suitable for icy, packed or soft snow surface.
2.Optimized tread pattern for maximum traction.
3.Unique tread compound improves tread life.
Product data
| Parameter table | ||||||||||||||
| Size | Load index | TRA code | Speed index | Rim | Section width (mm)/inch | Overall diameter (mm)/inch | Tread depth (mm)/32nds | Load capacity （kg） | Inflation pressure (kPa)(psi) | Type | ||||
| 15.5R25 | ☆☆ | E-2/L-2 | B | 12.00/1.3 | 394 | 15.5 | 1278 | 50.3 | 24 | 30.2 | 4500 | 525 | 76 | TL |
| 17.5R25 | ☆☆ | E-2/L-2 | B | 14.00/1.5 | 445 | 17.5 | 1348 | 53.1 | 27 | 34 | 5450 | 525 | 76 | TL |
| 20.5R25 | ☆☆ | E-2/L-2 | B | 17.00/2.0 | 521 | 20.5 | 1493 | 58.8 | 30 | 37.8 | 7300 | 525 | 76 | TL |
| 23.5R25 | ☆☆ | E-2/L-2 | B | 19.50/2.5 | 597 | 23.5 | 1617 | 63.7 | 32 | 40.3 | 9250 | 525 | 76 | TL |
| 26.5R25 | ☆☆ | E-2/L-2 | B | 22.00/3.0 | 673 | 26.5 | 1750 | 68.9 | 35 | 44.1 | 11500 | 525 | 76 | TL |
| Parameter table | ||||||||||||||
| Size | Load index | TRA code | Speed index | Rim | Section width (mm)/inch | Overall diameter (mm)/inch | Tread depth (mm)/32nds | Load capacity （kg） | Inflation pressure (kPa)(psi) | Type | ||||
| 15.5R25 | ☆☆ | E-2/L-2 | A2 | 12.00/1.3 | 394 | 15.5 | 1278 | 50.3 | 24 | 30.2 | 7100 | 650 | 94 | TL |
| 17.5R25 | ☆☆ | E-2/L-2 | A2 | 14.00/1.5 | 445 | 17.5 | 1348 | 53.1 | 27 | 34.0 | 8500 | 650 | 94 | TL |
| 20.5R25 | ☆☆ | E-2/L-2 | A2 | 17.00/2.0 | 521 | 20.5 | 1493 | 58.8 | 30 | 37.8 | 11500 | 650 | 94 | TL |
| 23.5R25 | ☆☆ | E-2/L-2 | A2 | 19.50/2.5 | 597 | 23.5 | 1617 | 63.7 | 33 | 41.6 | 14500 | 650 | 94 | TL |
| 26.5R25 | ☆☆ | E-2/L-2 | A2 | 22.00/3.0 | 673 | 26.5 | 1750 | 68.9 | 36 | 45.4 | 18500 | 650 | 94 | TL |
