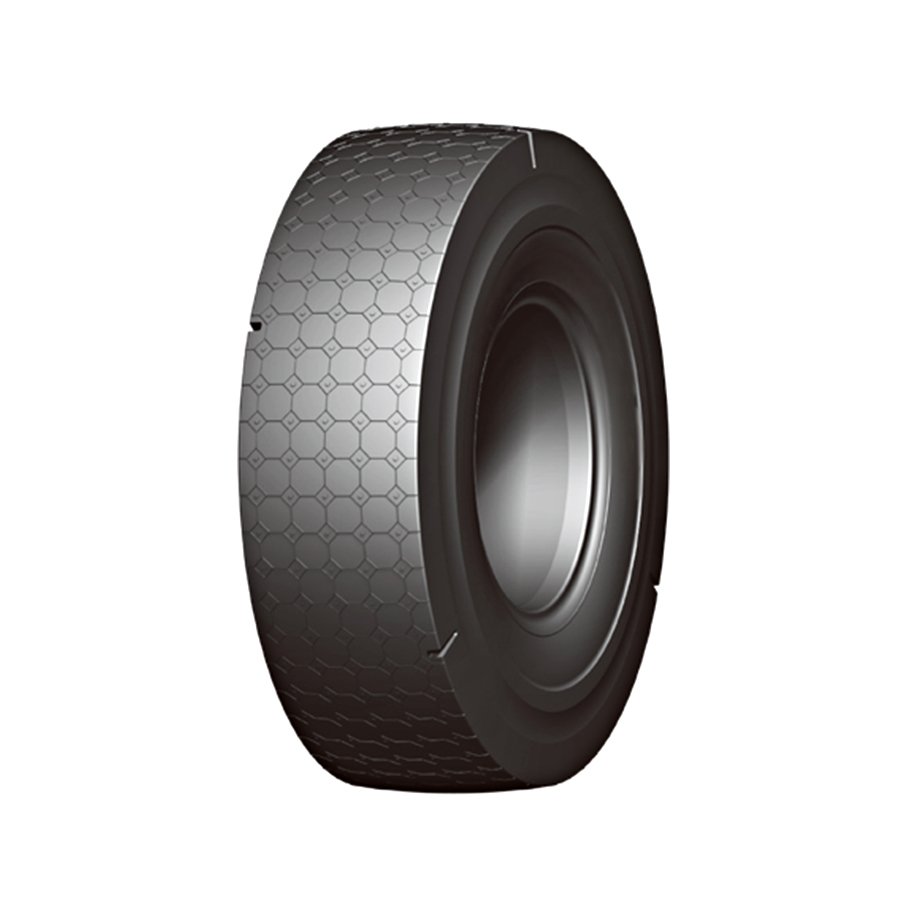

AX505 L-5S
Product introduction：
Pattern name: AX505
Pattern model: L-5S RADIAL
Purpose: Underground mine
Product Details
1.Deep tread depth available for long tire life.
2.Robust shoulders with sidewall protection.
3.Excellent adhension in the most difficult conditions.
Product data
| Parameter table | ||||||||||||||
| Size | Load index | TRA code | Speed index | Rim | Section width (mm)/inch | Overall diameter (mm)/inch | Tread depth (mm)/32nds | Load capacity （kg） | Inflation pressure (kPa)(psi) | Type | ||||
| 17.5R25 | ☆☆ | L-5S | A2 | 14.00/1.5 | 445 | 17.5 | 1390 | 54.7 | 73 | 92.0 | 8600 | 650 | 94 | TT |
| 17.5R25 | ☆☆ | L-5S | A2 | 14.00/1.5 | 445 | 17.5 | 1390 | 54.7 | 73 | 92.0 | 8600 | 650 | 94 | TL |
