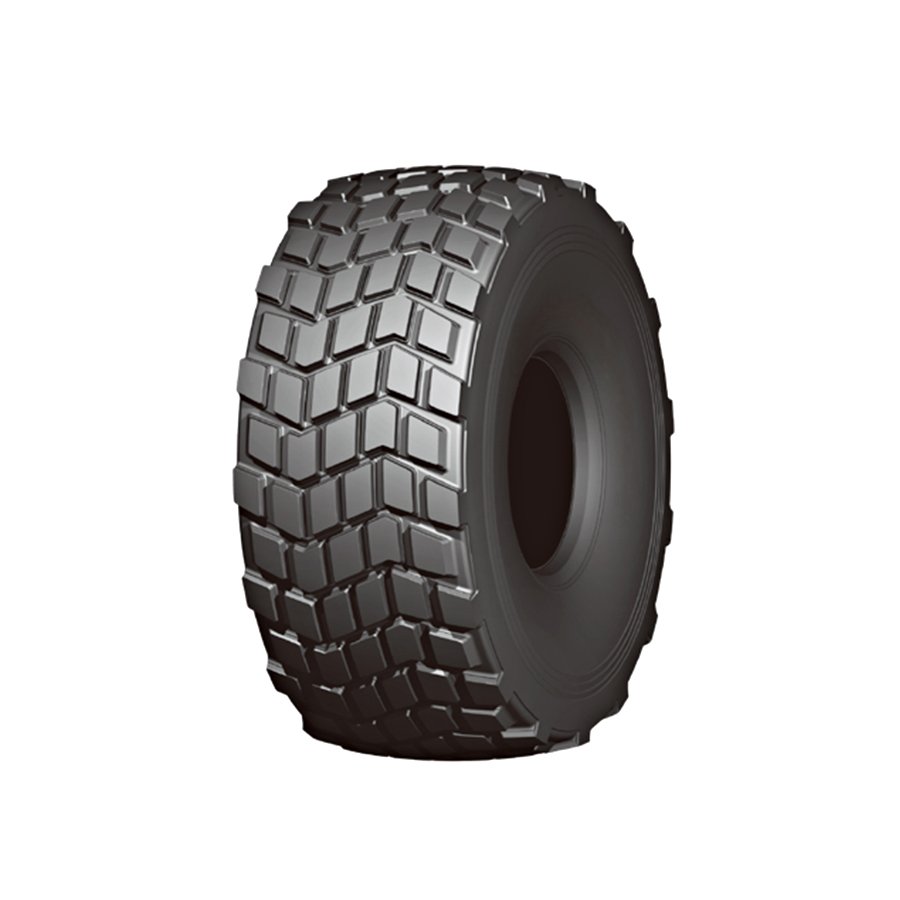

AX701 E-7
Product introduction：
Pattern name: AX701
Pattern model: E-7 RADIAL
Purpose: Sand
Product Details
1.Optimum tread pattern designed for desert and soft ground.
2.Unique shoulder design improves maneuverability on hard surface.
3.Heavy load at low iflation pressure.
Product data
| Parameter table | ||||||||||||||
| Size | Load index | TRA code | Speed index | Rim | Section width (mm)/inch | Overall diameter (mm)/inch | Tread depth (mm)/32nds | Load capacity （kg） | Inflation pressure (kPa)(psi) | Type | ||||
| 24R20.5 | ☆ | E-7 | F | 18.00 | 600 | 23.6 | 1370 | 53.9 | 21 | 26.5 | 7100 | 600 | 87 | TL |
