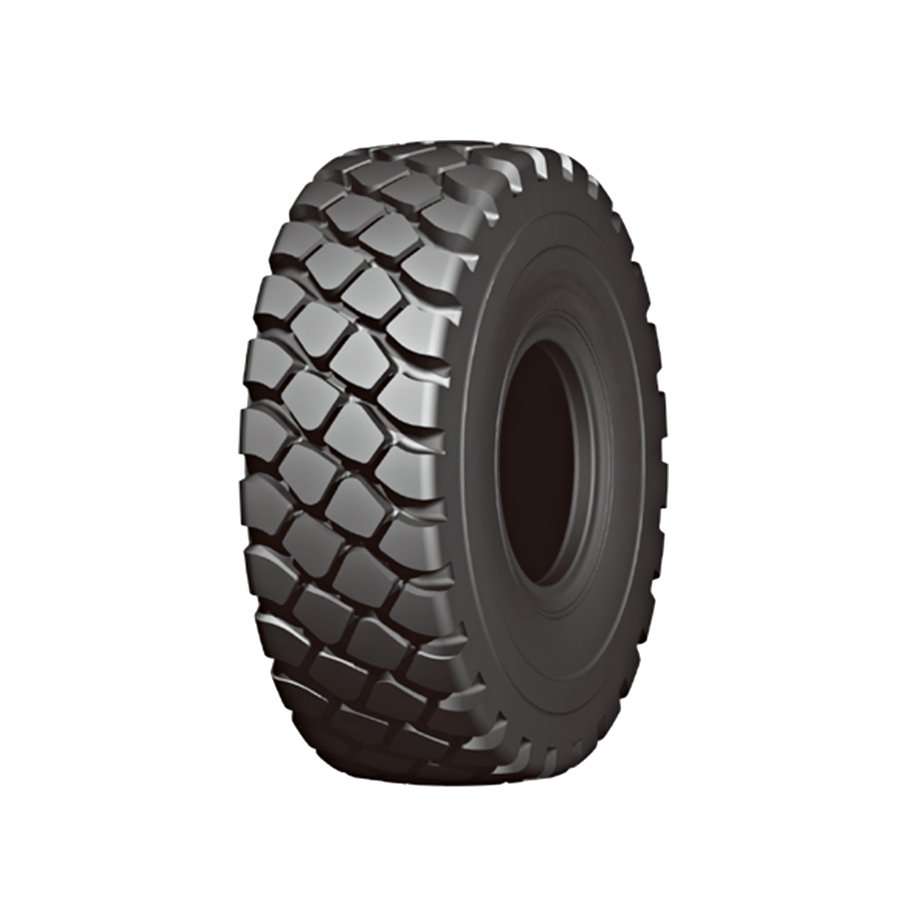

AX405 E-4
Product introduction：
Pattern name: AX405
Pattern model: E-4 RADIAL
Purpose: Loader and earthmover
Product Details
1.Non-directional tread design for outstanding traction.
2.Enhanced radial construction provides superior flotation and stability.
3.Deep tread depth for optimal tread life.
Product data
| Parameter table | ||||||||||||||
| Size | Load index | TRA code | Speed index | Rim | Section width (mm)/inch | Overall diameter (mm)/inch | Tread depth (mm)/32nds | Load capacity （kg） | Inflation pressure (kPa)(psi) | Type | ||||
| 20.5R25 | ☆☆ | E-4 | B | 17.00/2.0 | 521 | 20.5 | 1493 | 58.8 | 50 | 63.0 | 7300 | 525 | 76 | TL |
| 23.5R25 | ☆☆ | E-4 | B | 19.50/2.5 | 597 | 23.5 | 1673 | 65.9 | 50 | 63.0 | 9250 | 525 | 76 | TL |
| 26.5R25 | ☆☆ | E-4 | B | 22.00/3.0 | 673 | 26.5 | 1798 | 70.8 | 55 | 69.3 | 11500 | 525 | 76 | TL |
| 29.5R25 | ☆☆ | E-4 | B | 25.00/3.5 | 749 | 29.5 | 1921 | 75.6 | 60 | 75.6 | 14000 | 525 | 76 | TL |
