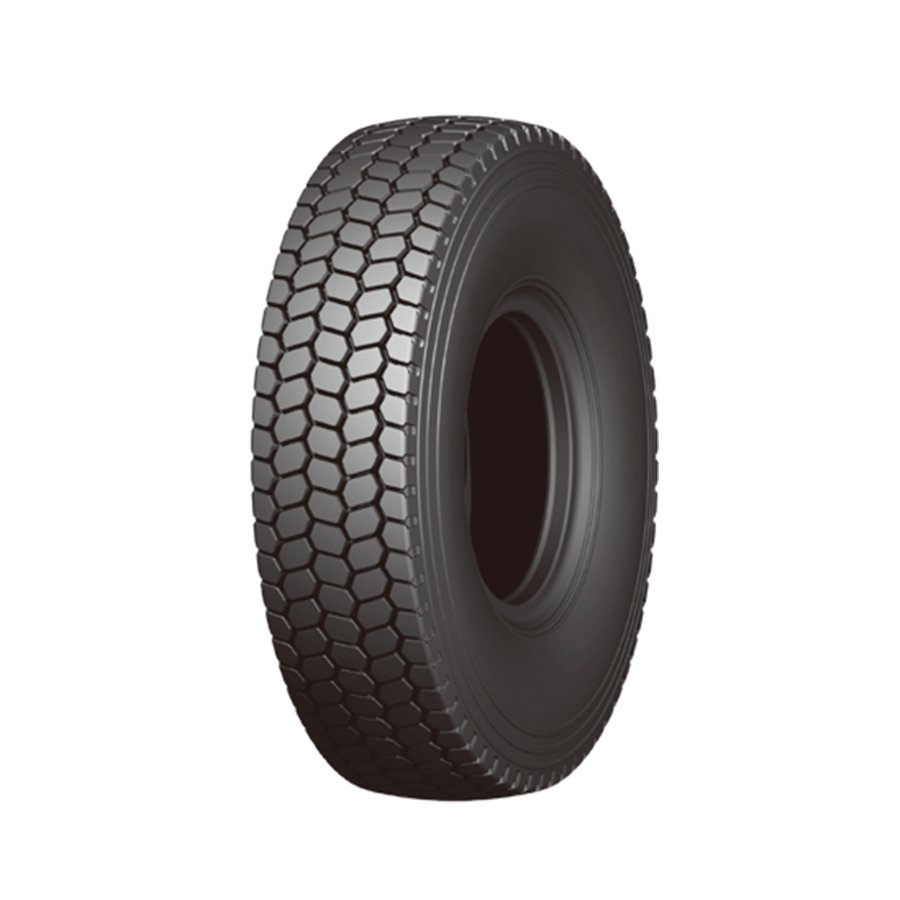

AX203 E-2
Product introduction：
Pattern name: AX203
Pattern model: E-2 RADIAL
Purpose: Mobile crane
Product Details
1.Optimum casing design ensures even contact distribution which leads even wearing.
2.The newly developed compound leads to a remarkable increase in life.
Product data
| Parameter table | ||||||||||||||
| Size | Load index | TRA code | Speed index | Rim | Section width (mm)/inch | Overall diameter (mm)/inch | Tread depth (mm)/32nds | Load capacity （kg） | Inflation pressure (kPa)(psi) | Type | ||||
| 385/95R25 | ☆☆☆ | E-2 | E | 10.00/1.5 | 379 | 14.9 | 1369 | 53.9 | 21 | 26.5 | 6000 | 900 | 130 | TL |
| 445/95R25 | ☆☆☆ | E-2 | E | 11.25/2.0 | 435 | 17.1 | 1481 | 58.3 | 23 | 29.0 | 7300 | 900 | 130 | TL |
