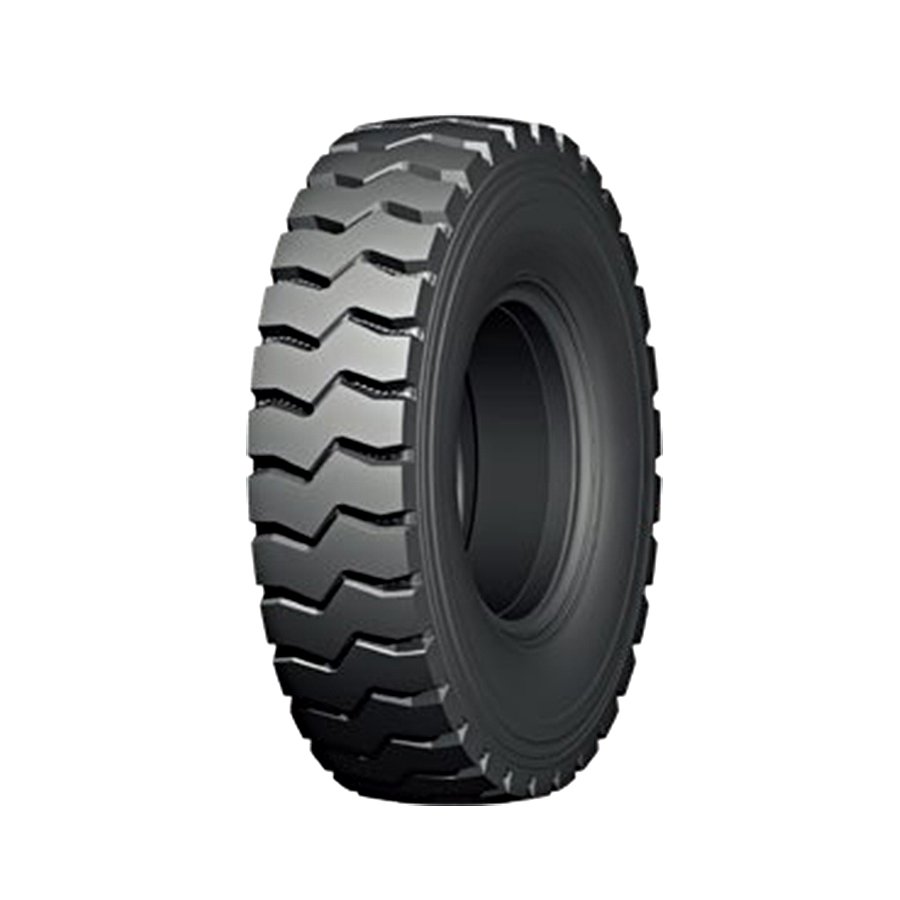

AX306 E-3
Product introduction：
Pattern name: AX306
Pattern model: E-3 RADIAL
Purpose: Mining dumping truck
Product Details
1.Excellent traction due to wide and deep transverse grooves.
2.Outstanding tire life and exceptional resistance to aggression.
Product data
| Parameter table | ||||||||||||||
| Size | Load index | TRA code | Speed index | Rim | Section width (mm)/inch | Overall diameter (mm)/inch | Tread depth (mm)/32nds | Load capacity （kg） | Inflation pressure (kPa)(psi) | Type | ||||
| 14.00R25 | ☆☆☆ | E-3 | B | 10.00 | 375 | 14.8 | 1370 | 53.8 | 27 | 34.0 | 5800 | 700 | 102 | TT |
| 16.00R25 | ☆☆☆ | E-3 | B | 11.25/2.0 | 437 | 17.2 | 1492 | 58.7 | 31 | 39.1 | 8000 | 800 | 116 | TL |
| 16.00R25 | ☆☆☆ | E-3 | B | 11.25/2.0 | 437 | 17.2 | 1492 | 58.7 | 31 | 39.1 | 8000 | 800 | 116 | TL |
