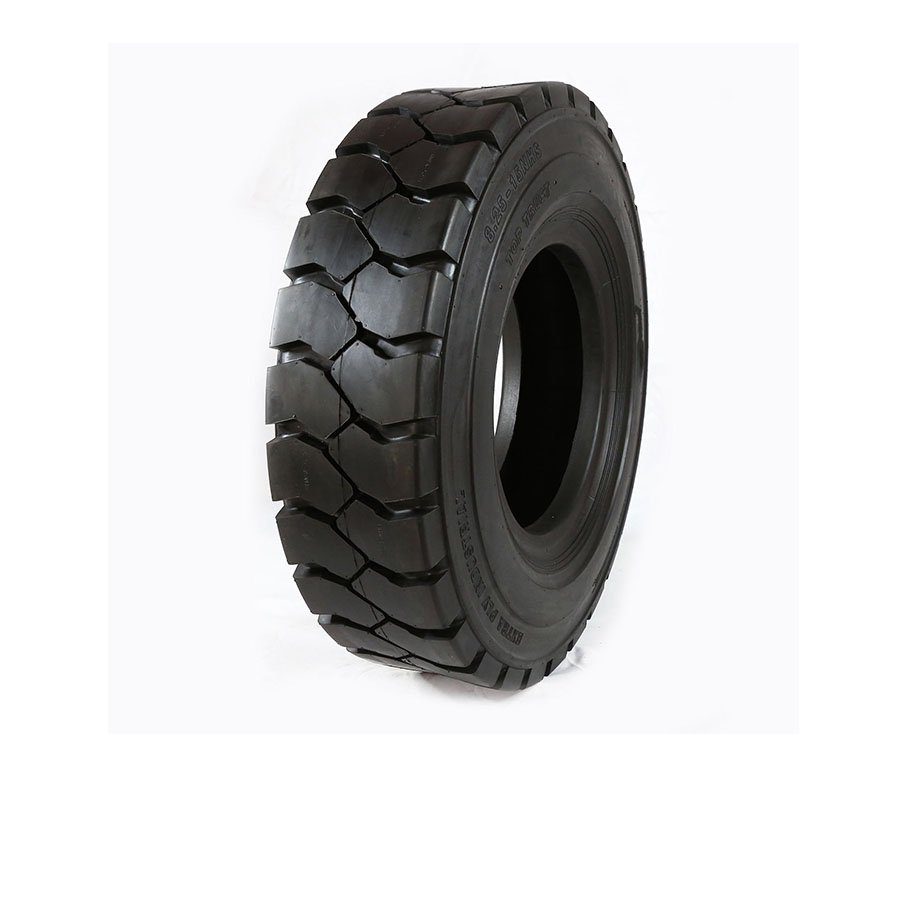

Forklift Pneumatic Tyre

Forklift Pneumatic Tyre

Product Details

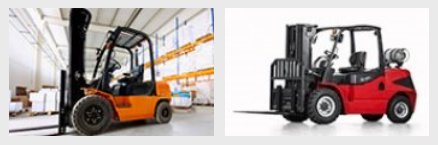

1、Suitable to scrapers and forklifts operating in areas like port,air port,factory and warehouse sites etc.

2、With good cutting and wear resistances,wide and thick tread pattern provides good ground contact and traction,self-cleaning,long service life.

Product data

Parameter table
Size	PR	Type	Rim	Overall Diameter (mm)	Section Width (mm)	Tread Depth (mm)	Maximum.Load .Capacity (Kgs)								Inflation Pressure (Kpa)
							Maximum.Load .Capacity (Kgs)
							Drive Wheel		Steer Wheel		Industrail Vehicles
							16km/h	24km/h	24km/h	32km/h	8km/h	16km/h	24km/h	32km/h
5.00-8	10	TT	350D	468	144	12	1290	1100	955	850	955	760	705	655	1000
6.00-9	10	TT	4.00E	540	166	13	1680	1515	1280	1125	1280	1010	945	875	860
6.50-10	10	TT	5.00F	590	186	15	1915	1725	1455	1280	1455	1150	1075	1000	790
7.00-9	10	TT	5.00S	590	190	19	2670	2320	2035	1805	1670	1310	1255	1050	860
7.00-12	12	TT	5.00S	676	197	19	2720	2445	2065	1815	2065	1360	1520	1415	860
7.00-12	14	TT	5.00S	676	197	19	2965	2670	2255	1980	2255	1780	1660	1540	1000
7.00-15	12	TT	5.50F	762	203	19	3150	2835	2395	2100	2395	1890	1760	1635	1000
7.00-15	14	TT	5.50F	762	203	19	3400	3060	2585	2270	2585	2040	1910	1785	1000
7.50-15	12	TT	6.00G	802	215	19	3490	3140	2650	2330	2650	2095	1955	1815	925
7.50-15	14	TT	6.00G	802	215	19	3640	3290	2800	2480	2800	2245	2105	1965	925
8.25-15	12	TT	6.5	830	250	20	3935	3545	2990	2630	2990	2365	2205	2050	830
8.25-15	14	TT	6.5	830	250	20	4255	3830	3235	2845	3235	2555	2385	2215	830
18x7-8 (180/70-8)	14	TT	4.33R	465	173	14	1855	1685	1450	1295	1450	1160	1100	1040	900
18x7-8 (180/70-8)	16	TT	4.33R	465	173	14	2130	1960	1640	1490	1640	1355	1285	1205	1000
21x8-9 (200/75-9)	14	TT	6.00E	533	203	15	2350	2115	1785	1570	1785	1405	1315	1220	1000
23x9-10	18	TT	6.50F	584	225	13	3240	2900	2485	2285	2485	1965	1875	1710	1080
27x10-12	14	TT	8.00G	690	255	16	3400	3035	2650	2350	2650	2140	1980	1800	830
28x9-15 (8.15-15)	12	TT	7	706	221	20	3415	3075	2595	2280	2595	2050	1910	1775	970
250-15	16	TT	7.5	735	250	20	4285	3855	3265	2860	3265	2575	2405	2230	930
250-15	18	TT	7.5	735	250	20	4580	4105	3470	3040	3470	2745	2560	2375	1030
300-15 (315/70-15)	20	TT	8	840	300	21	6575	5940	4990	4400	4990	3945	3675	3425	930
9.00-20	14	TT	7	1034	259	20	5880	5285	4465	4105	4465	3520	3290	3065	760
10.00-20	16	TT	7.5	1070	278	22	6765	6085	5140	4520	5140	4055	3790	3520	795
10.00-20	18	TT	7.5	1070	278	22	7300	6560	5545	4875	5545	4370	4090	3800	900
12.00-20	16	TT	8.5	1145	315	25	7725	6980	5895	5180	5895	4655	4345	4035	690
	18	TT	8.5	1145	315	25	8275	7500	6415	5700	6415	5175	4865	4555	900
	20	TT	8.5	1145	315	25	8865	8090	7005	6290	7005	5765	5455	5145	1150
	24	TT	8.5	1145	315	25	9455	8680	7595	6880	7595	6355	6045	5735	1150
	28	TT	8.5	1145	315	25	10355	9460	8345	7630	8345	7105	6795	6485	1300
