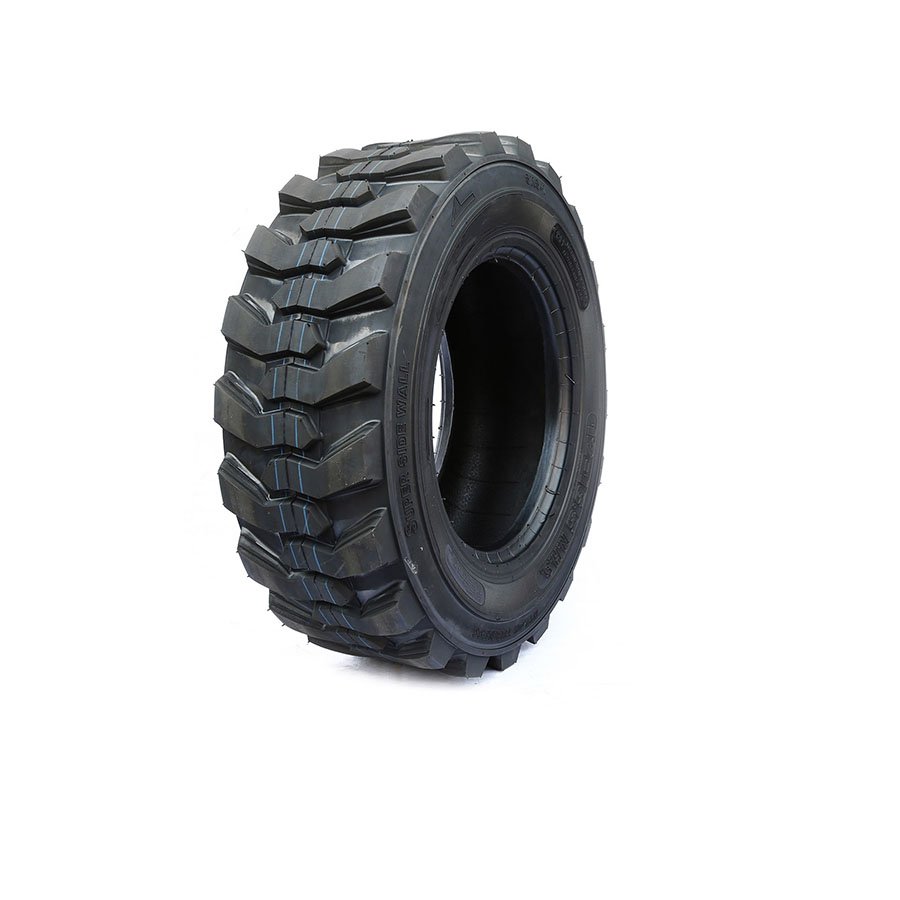

Skid Steer Tyre-SKS1
Product Details

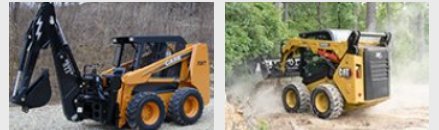

1、Deep-tread tire built especiaily for skid-steer and aerial lift equipment.
2、Heavy-duty sidewall and large curb rib deliver more stability and greater puncture resistance.
3、Built to last with deep tread,buttressed lugs,full sidewall protection and an aggressive rim deflector to keep out detris.
4、Special puncture-resistant rubber compounds take on the most demanding congitions.
Product data
| Parameter table | |||||||
| Size | Ply-rating | Rim | Tube Type | S.W.(mm) | O.D.(mm) | Max.Load(kg)10km/h | Inflation Pressure(kpa)10km/h |
| 23x8.5-12 | 6 | 7I-55 | TL | 213 | 574 | 820 | 340 |
| 26x12.00-12 | 6 | 10.5I-55 | TL | 307 | 648 | 1110 | 240 |
| 10 | 10.5I-55 | TL | 307 | 648 | 1630 | 450 | |
| 27x8.5-15 | 6 | 7JA | TL | 218 | 681 | 1210 | 315 |
| 8 | 7JA | TL | 218 | 681 | 1310 | 415 | |
| 27x10.5-15 | 8 | 8LB | TL | 259 | 699 | 1410 | 415 |
| 31x15.5-15 | 8 | 13LBx15 | TL | 391 | 792 | 1420 | 310 |
| 10 | 13LBx15 | TL | 391 | 792 | 1680 | 410 | |
| 12 | 13LBx15 | TL | 391 | 792 | 1940 | 480 | |
| 33x15.5-16.5 | 12 | 12 | TL | 394 | 838 | 3100 | 415 |
| 14 | 12 | TL | 394 | 838 | 3390 | 480 | |
| 385/65-22.5(15-22.5) | 12 | 11.75 | TL | 386 | 1090 | 4375 | 480 |
| 16 | 11.75 | TL | 389 | 1095 | 6900 | 700 | |
| 18 | 11.75 | TL | 389 | 1095 | 7750 | 800 | |
| 10-16.5 | 10 | 8.25 | TL | 264 | 773 | 2135 | 520 |
| 12 | 8.25 | TL | 264 | 773 | 2375 | 620 | |
| 12-16.5 | 10 | 9.75 | TL | 307 | 831 | 2540 | 450 |
| 12 | 9.75 | TL | 307 | 831 | 2865 | 550 | |
| 14-17.5 | 14 | 10.5 | TL | 349 | 921 | 3875 | 550 |
| 15-19.5 | 14 | 11.75 | TL | 389 | 1019 | 4565 | 480 |
