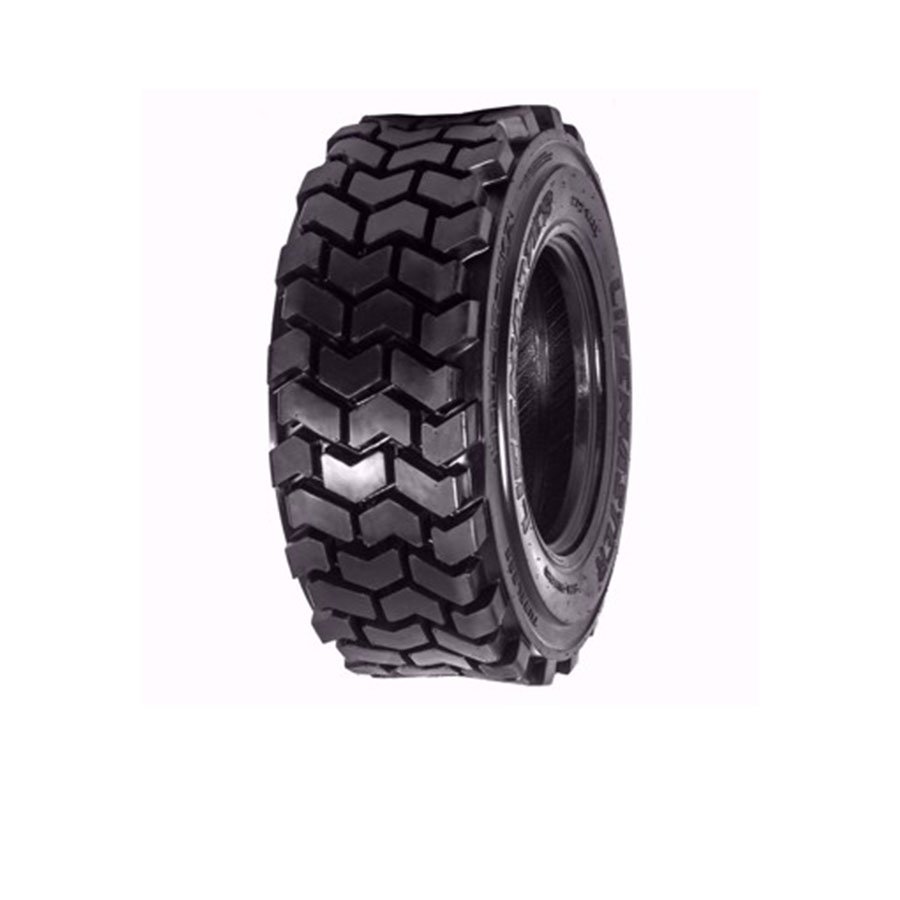

Skid Steer Tyre -SKS4
Product Details
1、The block pattern tire for skid steer in construction applications.
2、Ideal for paved surafce and heavy-duty service.
3、Excellent cut and chip resistance as well as top rim protection.
Product data
| Parameter table | |||||||
| Size | PR | Type | Rim | Overall Diameter (mm) | Section Width (mm) | Max.Load(kg)10km/h | Inflation Pressure(kpa)10km/h |
| 10-16.5 | 10 | TL | 8.25 | 773 | 264 | 2135 | 520 |
| 12-16.5 | 12 | TL | 9.75 | 840 | 310 | 2865 | 550 |
| 10.5/80-18 | 12 | TL | W9 | 907 | 274 | 1550 | 420 |
| 12.5/80-18 | 12 | TL | W9 | 987 | 308 | 1850 | 370 |
