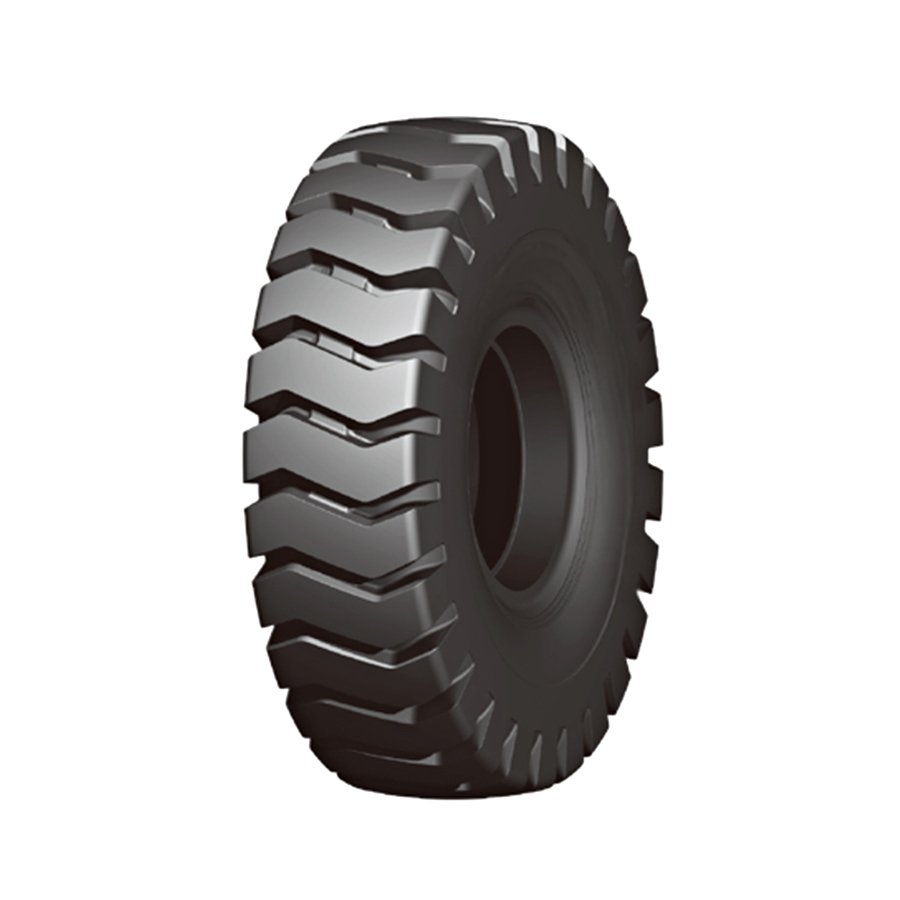

AX102 IND-3
Product introduction：
Pattern name: AX102
Pattern model: IND-3 BIAS
Purpose: INDUSTRIAL
Product Details
1.Reinforced bead and sidewall area provide exceptional durability.
2.Special tread compound enables less heat generation and additional scrub resistance.
3.Optimal rubber-to-void ratio provides better stability.
Product data
| Size | Ply rating | TRA code | Rim | Section width (mm)/inch | Overall diamater (mm)/inch | Tread depth (mm)/32nds | 10km/h | 40km/h | Type | |||||
| Loda capacity (kg) | Inflation pressure (Kpa)/(psi) | Load capacity (kg) | Inflation Pressure (Kpa)/(psi) | |||||||||||
| 18.00-25 | 44 | IND-3 | 13.00/2.5 | 500 | 19.7 | 1615 | 63.6 | 44 | 55.4 | 26100 | 1000/145 | 24300 | 1000/145 | TL |
| 21.00-25 | 40 | IND-3 | 15.00/3.0 | 570 | 22.4 | 1750 | 68.9 | 44 | 55.4 | 29310 | 1000/145 | 27290 | 1000/145 | TL |
