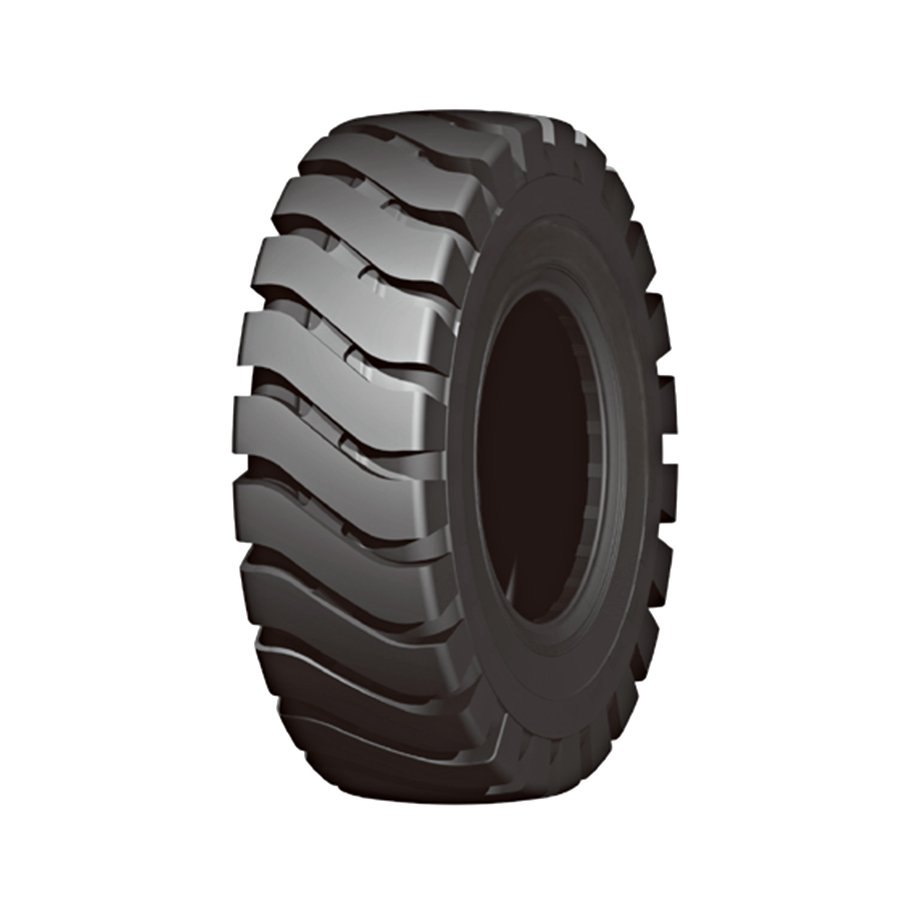

AX307 E-3L-3
Product introduction：
Pattern name: AX307
Pattern model: E-3/L-3 BIAS
Purpose: Loader and earthmover
Product Details
1.Rugged tread design for superior cut protection.
2.E3+ tread depth design enhances wearing life.
3.Special tread compound ensures outstanding cut resistance.
Product data
| Size | Ply rating | TRA code | Rim | Section width (mm)/inch | Overall diamater (mm)/inch | Tread depth (mm)/32nds | 10km/h | 50km/h | Type | |||||
| Load capacity (kg) | Inflation pressure (Kpa)/(psi) | Load capacity (kg) | Inflation Pressure (Kpa)/(psi) | |||||||||||
| 17.5-25 | 12 | L-3+ | 14.00/1.5 | 445 | 17.5 | 1350 | 53.1 | 36 | 45.4 | 6150 | 350/51 | 3650 | 225/33 | TT |
| 23.5-25 | 16 | L-3+ | 19.50/2.5 | 595 | 23.4 | 1615 | 63.6 | 45 | 56.7 | 9500 | 300/44 | 6150 | 225/33 | TT |
| 23.5-25 | 18 | L-3+ | 19.50/2.5 | 595 | 23.4 | 1615 | 63.6 | 45 | 56.7 | 10500 | 350/51 | 6700 | 275/40 | TT |
| 23.5-25 | 20 | L-3+ | 19.50/2.5 | 595 | 23.4 | 1615 | 63.6 | 45 | 56.7 | 10900 | 375/54 | 7300 | 300/44 | TT |
| 23.5-25 | 24 | L-3+ | 19.50/2.5 | 595 | 23.4 | 1615 | 63.6 | 45 | 56.7 | 12500 | 475/69 | 8000 | 350/51 | TT |
| 23.5-25 | 28 | L-3+ | 19.50/2.5 | 595 | 23.4 | 1615 | 63.6 | 45 | 56.7 | 13600 | 550/80 | 8750 | 400/58 | TT |
