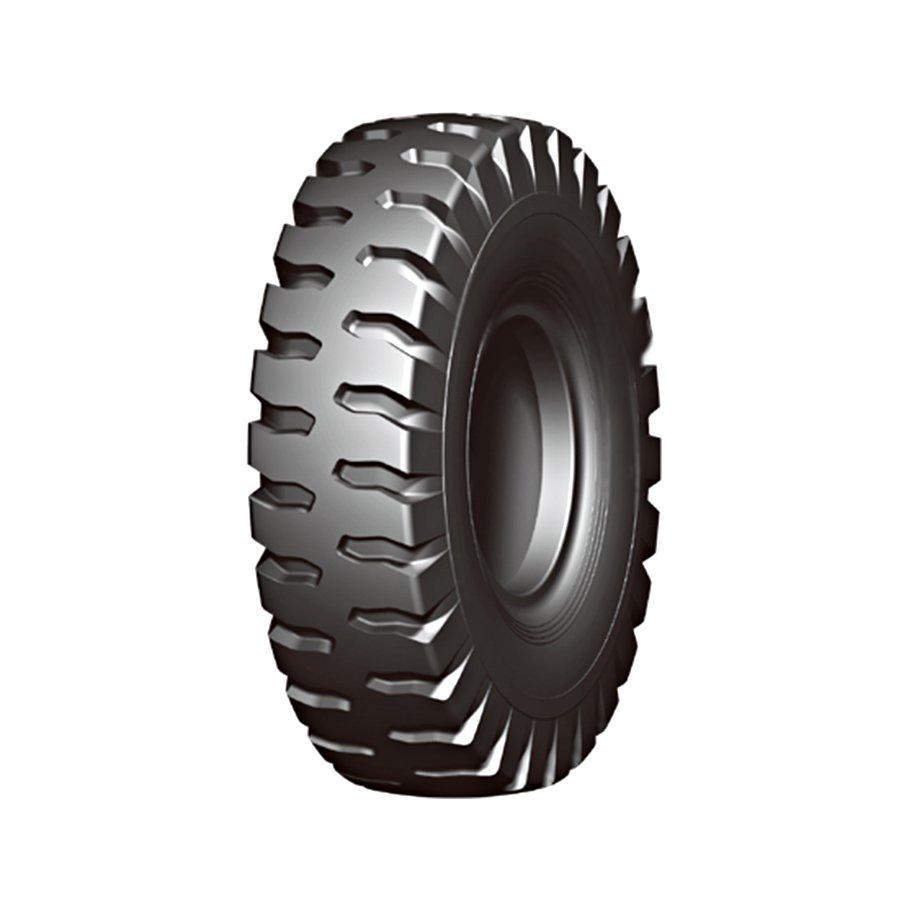

AX312 E-3
Product introduction：
Pattern name: AX312
Pattern model: E-3 BIAS
Purpose: Rigid dump trucks
Product Details
1.Classic undirected pattern design, suitable for a variety of road conditions.
2.Special cold resistant formula design can meet the needs of low temperature environment performance is improved.
Product data
| Size | Ply rating | TRA code | Rim | Section width (mm)/inch | Overall diamater (mm)/inch | Tread depth (mm)/32nds | 10km/h | 50km/h | Type | |||||
| Load capacity (kg) | Inflation pressure (Kpa)/(psi) | Loda capacity (kg) | Inflation Pressure (Kpa)/(psi) | |||||||||||
| 18.00-25 | 32 | E-3 | 13.00/2.5 | 500 | 19.7 | 1615 | 63.6 | 30 | 37.8 | 15000 | 750/109 | 8750 | 575/83 | TT |
| 18.00-25 | 36 | E-3 | 13.00/2.5 | 500 | 19.7 | 1615 | 63.6 | 30 | 37.8 | 16000 | 850/127 | 9250 | 625/91 | TT |
| 18.00-25 | 40 | E-3 | 13.00/2.5 | 500 | 19.7 | 1615 | 63.6 | 30 | 37.8 | 17000 | 950/138 | 9750 | 700/102 | TT |
