AX501 L-4S L-5S
Product introduction：

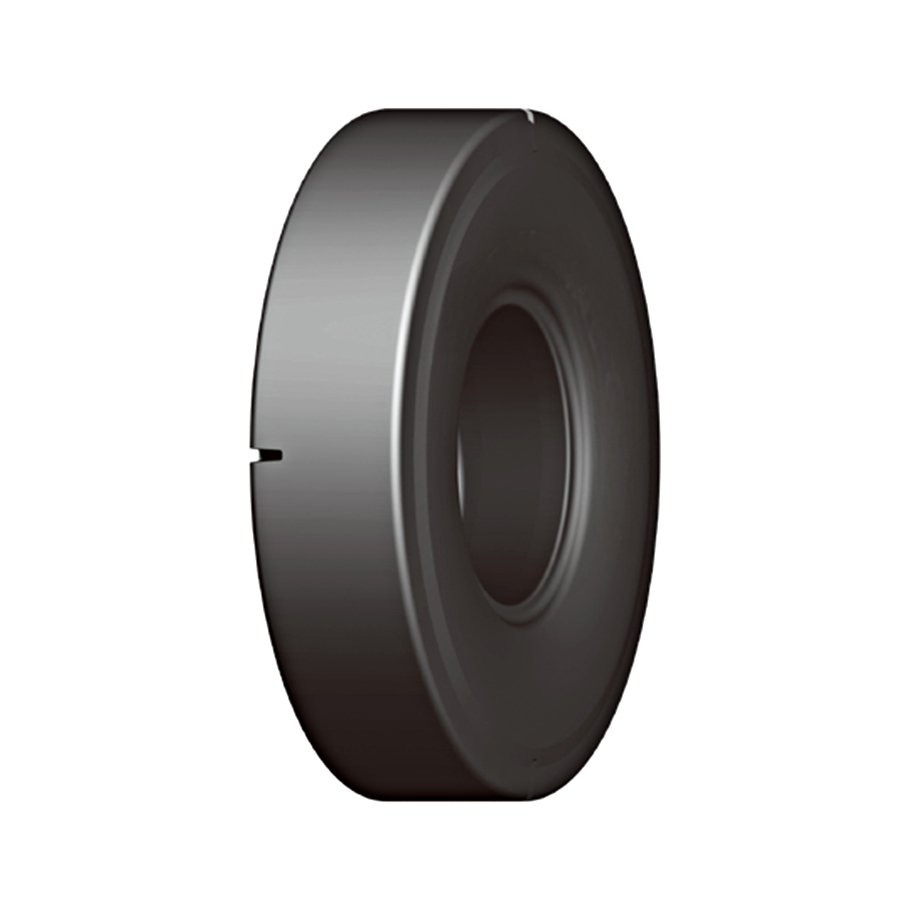

Pattern name: AX501
Pattern model: L-4S/L-5S BIAS
Purpose: Underground mine
Product Details
1.Smooth tread design eliminates lug tearing for longer wear.
2.Excellent performance in hard rock quarry service applications.
3.Extra heavy sidewall resists cuts and snags.
Product data
| Size | Ply rating | TRA code | Rim | Section width (mm)/inch | Overall diamater (mm)/inch | Tread depth (mm)/32nds | 10km/h | Type | ||||
| Load capacity (kg) | Inflation pressure (Kpa)/(psi) | |||||||||||
| 9.00-20 | 14 | L-4S | 7.0 | 255 | 10.0 | 1045 | 41.1 | 35 | 44.1 | 4375 | 725/105 | TT |
| 9.00-20 | 16 | L-4S | 7.0 | 255 | 10.0 | 1045 | 41.1 | 35 | 44.1 | 4750 | 825/120 | TT |
| 10.00-20 | 14 | L-4S | 7.5 | 278 | 10.9 | 1073 | 42.2 | 45 | 56.7 | 3260 | 670/97 | TT |
| 10.00-20 | 16 | L-4S | 7.5 | 278 | 10.9 | 1073 | 42.2 | 45 | 56.7 | 3535 | 770/112 | TT |
| 12.00-20 | 18 | L-5S | 8.5 | 315 | 12.4 | 1175 | 46.3 | 60 | 75.6 | 5800 | 775/112 | TT |
| 12.00-20 | 20 | L-5S | 8.5 | 315 | 12.4 | 1175 | 46.3 | 60 | 75.6 | 6150 | 830/120 | TT |
| 12.00-24 | 16 | L-5S | 8.5 | 315 | 12.4 | 1275 | 50.2 | 55 | 69.3 | 6150 | 675/98 | TT |
| 12.00-24 | 18 | L-5S | 8.5 | 315 | 12.4 | 1275 | 50.2 | 55 | 69.3 | 6500 | 750/109 | TT |
| 12.00-24 | 20 | L-5S | 8.5 | 315 | 12.4 | 1275 | 50.2 | 55 | 69.3 | 6900 | 825/120 | TT |
| 12.00-24 | 24 | L-5S | 8.5 | 315 | 12.4 | 1275 | 50.3 | 55 | 69.3 | 7500 | 975/141 | TT |
| 14.00-24 | 28 | L-5S | 10.00 | 375 | 14.8 | 1420 | 55.9 | 65 | 81.9 | 10000 | 930/135 | TT |
| 14.00-24 | 32 | L-5S | 10.00 | 375 | 14.8 | 1420 | 55.9 | 65 | 81.9 | 10900 | 1050/152 | TT |
| 16.00-25 | 32 | L-5S | 11.25/2.0 | 430 | 16.9 | 1550 | 61.0 | 75 | 94.5 | 12500 | 875/127 | TL |
| 17.5-25 | 20 | L-5S | 14.00/1.5 | 445 | 17.5 | 1400 | 55.1 | 65 | 81.9 | 8250 | 575/83 | TT |
| 17.5-25 | 32 | L-5S | 14.00/1.5 | 448 | 17.5 | 1400 | 55.1 | 65 | 81.9 | 11700 | 830/120 | TT |
| 18.00-25 | 32 | L-5S | 13.00/2.5 | 500 | 19.7 | 1675 | 65.9 | 85 | 107.1 | 15000 | 750/109 | TL |
| 18.00-25 | 40 | L-5S | 13.00/2.5 | 500 | 19.7 | 1675 | 65.9 | 85 | 107.1 | 17000 | 950/138 | TL |
