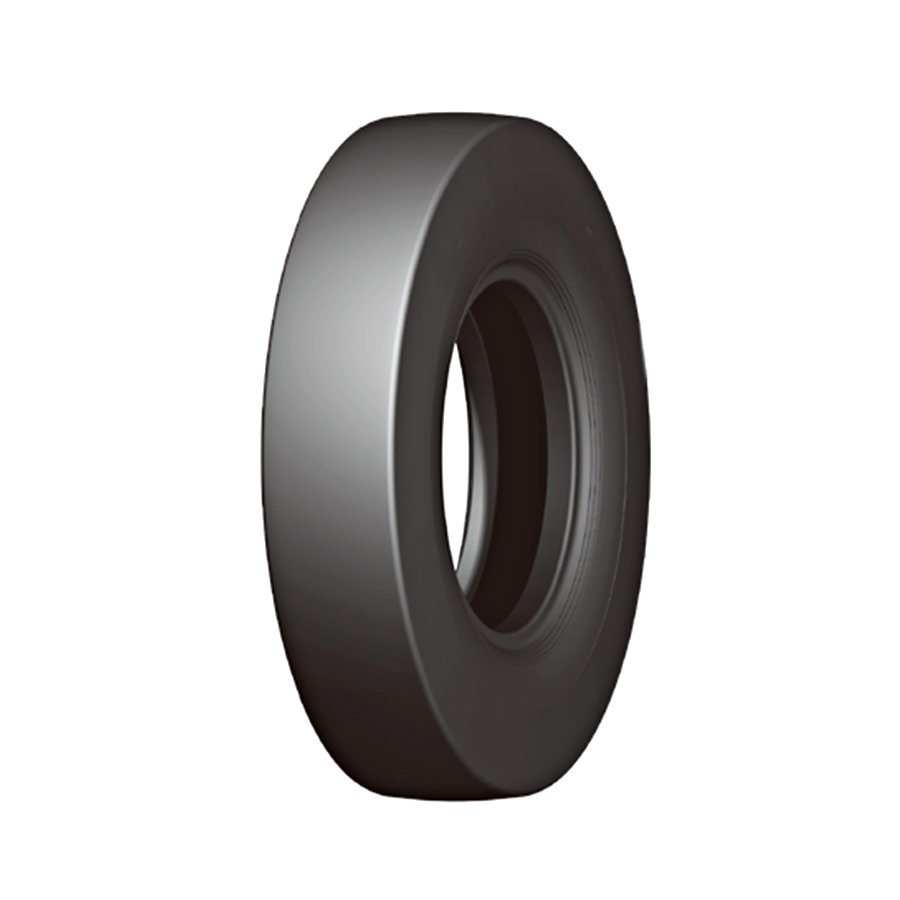

AX105 C-1
Product introduction：
Pattern name: AX105
Pattern model: C-1 BIAS
Purpose: Compactor
Product Details
1.Rubber compound used provides good resistance to oily chemicals such as coal tar.
2.Smooth tread which assures specific pressure distribution, ideal for guaranteeing maximum compacting of materials.
Product data
| Size | Ply rating | TRA code | Rim | Section width (mm)/inch | Overall diamater (mm)/inch | Tread depth (mm)/32nds | 10km/h | Type | ||||
| Load capacity (kg) | Loda capacity (kg) | |||||||||||
| 7.5-16 | 14 | C-1 | 6.00G | 215 | 8.5 | 810 | 31.9 | — | — | 2390 | 700/102 | TT |
| 9.00-20 | 14 | C-1 | 7.0 | 255 | 10.0 | 1015 | 40.0 | — | — | 4375 | 725/105 | TT |
