AX701 E-7
Product introduction：

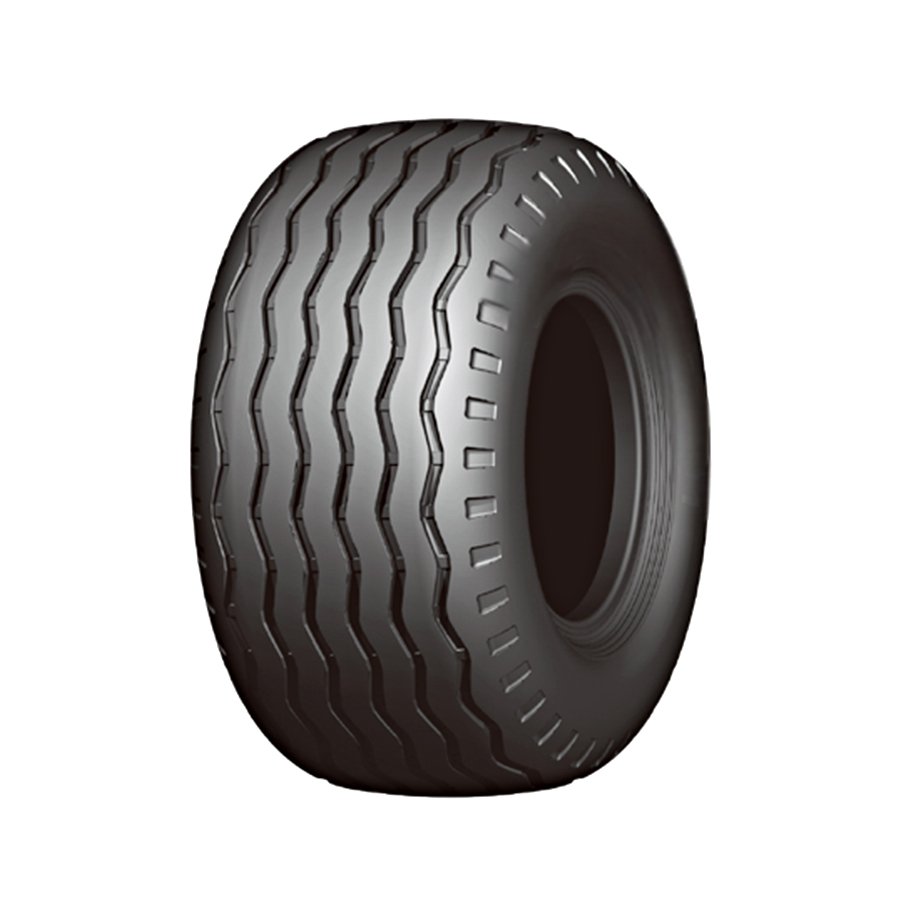

Pattern name: AX701
Pattern model: E-7 BIAS
Purpose: Dessert application sand
Product Details
1.Shallow tread depth provides excellent heat dissipation.
2.Designed for operating on desert or soft ground, as well as paved roads.
3.Rib design provides excellent steering stability and improved lateral traction.
Product data
| Size | Ply rating | TRA code | Rim | Section width (mm)/inch | Overall diamater (mm)/inch | Tread depth (mm)/32nds | 50km/h | Type | ||||
| Load capacity (kg) | Inflation pressure (Kpa)/(psi) | |||||||||||
| 18-20 | 14 | E-7 | 14.00T | 455 | 17.9 | 1090 | 42.9 | 16 | 20.2 | 4625 | 360/52 | TT/TL |
| 20-20 | 16 | E-7 | 14.00T | 505 | 19.9 | 1180 | 46.5 | 17 | 21.4 | 6000 | 360/52 | TL |
| 22-20 | 14 | E-7 | 17.0 | 555 | 21.9 | 1075 | 42.3 | 18 | 22.7 | 4125 | 280/41 | TL |
