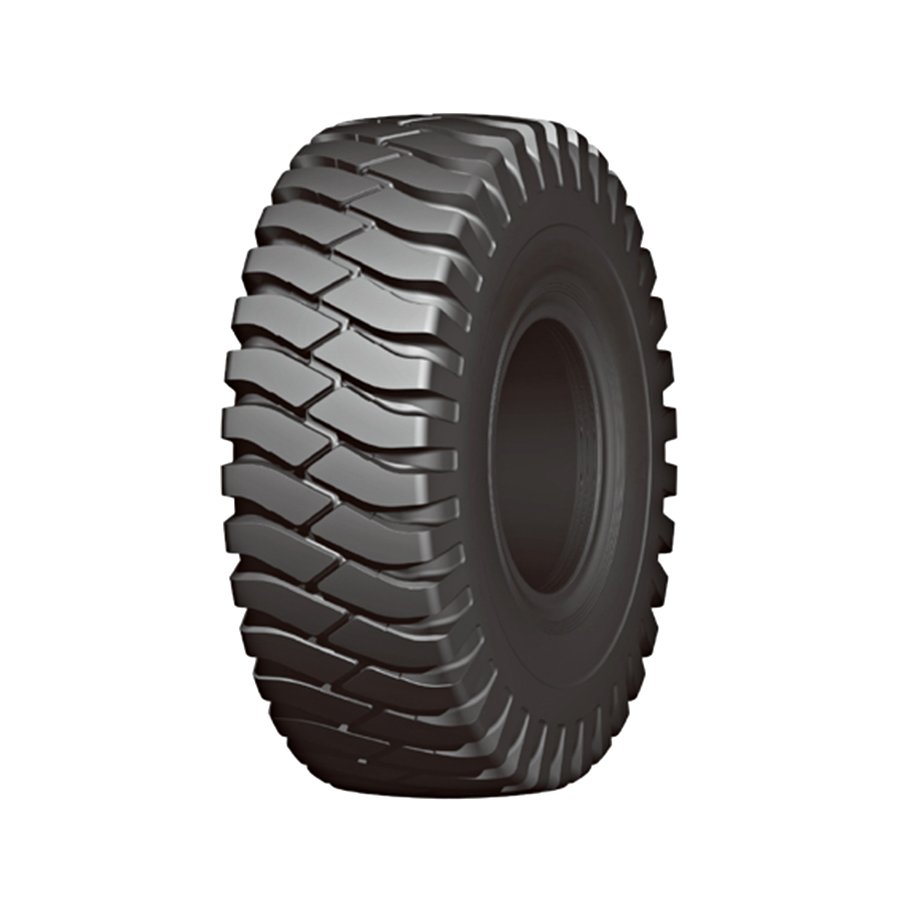

AX305 E-3L-3
Product introduction：
Pattern name: AX305
Pattern model: E-3/L-3 BIAS
Purpose: Loader and earthmover
Product Details
1.Heavy tire casing offers strength needed in a loader application.
2.Suitable for rocky or gravel surface in mines, quarries and construction sites.
3.Special tread pattern ensures fewer vehicle vibrations.
Product data
| Size | Ply rating | TRA code | Rim | Section width (mm)/inch | Overall diamater (mm)/inch | Tread depth (mm)/32nds | 10km/h | 50km/h | Type | |||||
| Load capacity (kg) | Inflation pressure (Kpa)/(psi) | Load capacity (kg) | Inflation Pressure (Kpa)/(psi) | |||||||||||
| 23.5-25 | 20 | L-3 | 19.50/2.5 | 595 | 23.4 | 1615 | 63.6 | 32 | 40.3 | 10900 | 375/54 | 7300 | 300/44 | TT |
