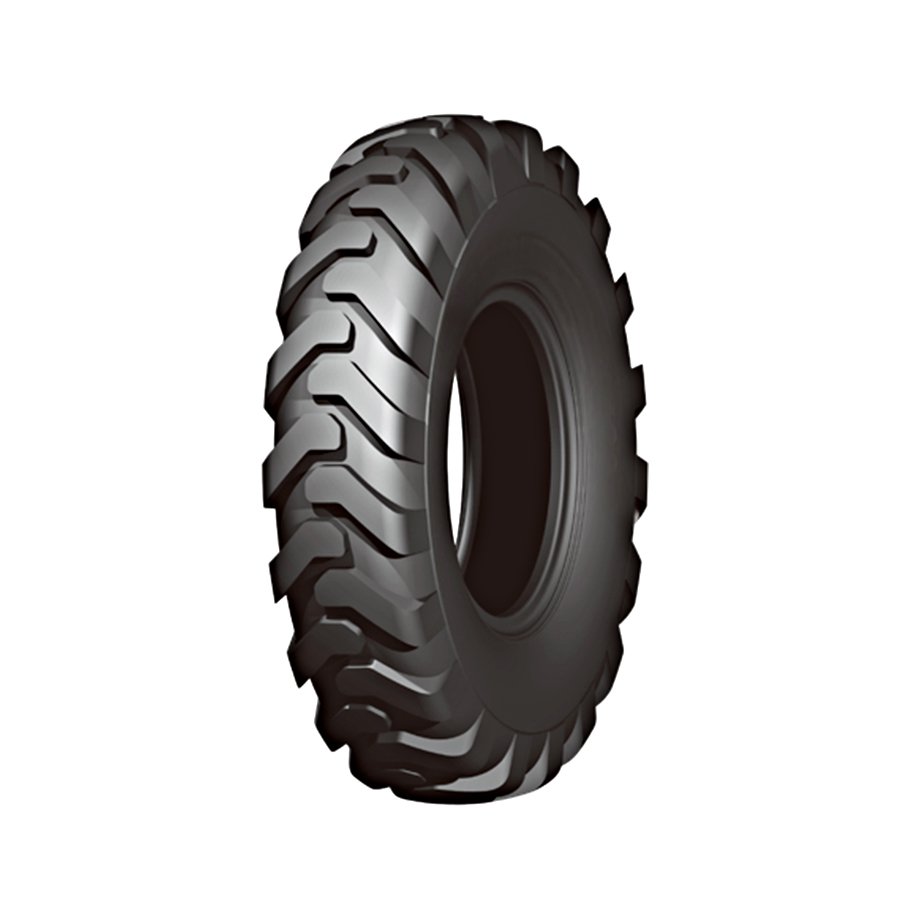

AX201 G-2
Product introduction：
Pattern name: AX201
Pattern model: G-2 BIAS
Purpose: Loader and earthmover
Product Details
1.45° tread pattern design provides superior traction.
2.Proven tread pattern for increased traction on dirt and pavement.
3.Special tread compound enhances the wearing life.
Product data
| Size | Ply rating | TRA code | Rim | Section width (mm)/inch | Overall diamater (mm)/inch | Tread depth (mm)/32nds | 10km/h | 40km/h | Type | |||||
| Load capacity (kg) | Inflation pressure (Kpa)/(psi) | Load capacity (kg) | Inflation pressure (Kpa)/(psi) | |||||||||||
| 13.00-24 TG | 12 | G-2 | 8.00TG | 335 | 13.2 | 1280 | 50.4 | 24 | 30.2 | 5600 | 450/65 | 2725 | 300/44 | TL |
| 13.00-24 TG | 18 | G-2 | 8.00TG | 335 | 13.2 | 1280 | 50.4 | 24 | 30.2 | 6700 | 675/98 | 3500 | 450/65 | TL |
| 14.00-24 TG | 12 | G-2 | 8.00TG | 360 | 14.2 | 1350 | 53.1 | 24 | 30.2 | 63500 | 425/62 | 3075 | 275/40 | TL |
| 14.00-24 TG | 26 | G-2 | 8.00TG | 360 | 14.2 | 1350 | 53.1 | 24 | 30.2 | 7300 | 550/80 | 3650 | 350/51 | TT/TL |
