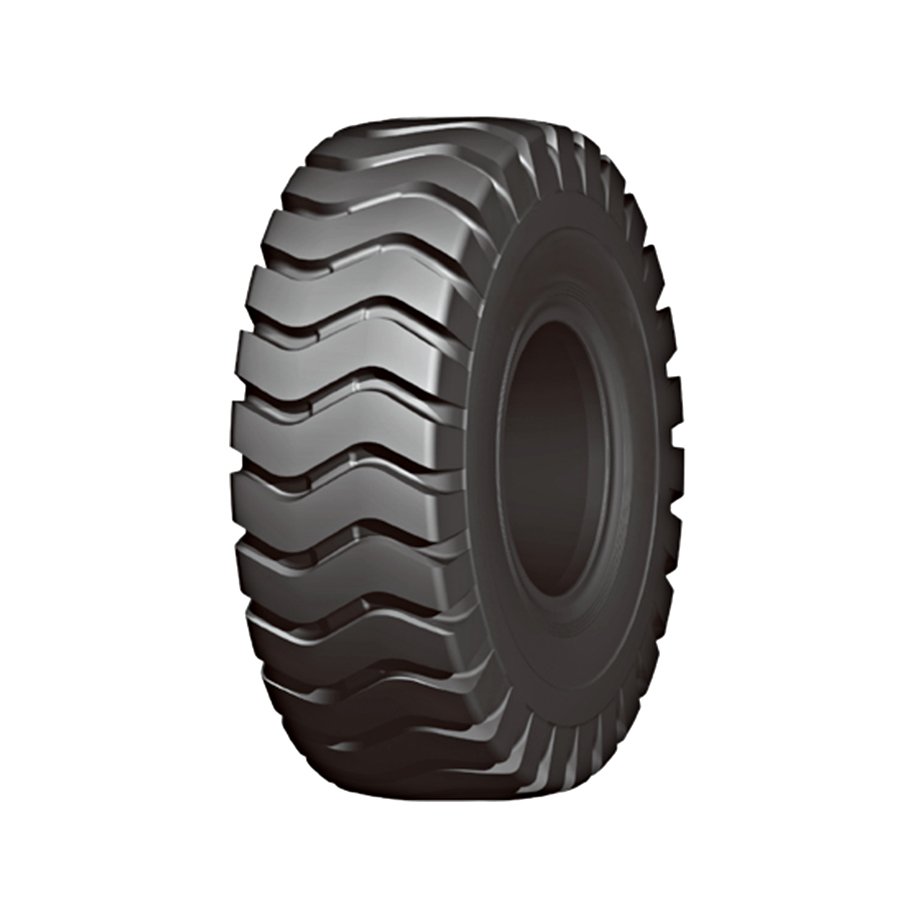

AX301 G-2
Product introduction:
Pattern name: AX301
Pattern model: G-2 BIAS
Purpose: Loader and earthmover
Product Details
1.Heavy tire casing offers strength needed in a grader application.
2.Suitable for rocky or gravel surface in mines, quarries and construction sites.
3.Solid performance and maneuverability on wet, soft or muddy surface.
Product data
Size | Ply rating | TRA code | Rim | Section width (mm)/inch | Overall diamater (mm)/inch | Tread depth (mm)/32nds | 10km/h | 40km/h | Type | |||||
Load capacity (kg) | Inflation pressure (Kpa)/(psi) | Load capacity (kg) | Inflation Pressure (Kpa)/(psi) | |||||||||||
14.00-24 TG | 16 | G-2 | 8.00TG | 36 | 14.2 | 130 | 53.1 | 25 | 31.5 | 7300 | 550/80 | 3650 | 350/51 | TT |
