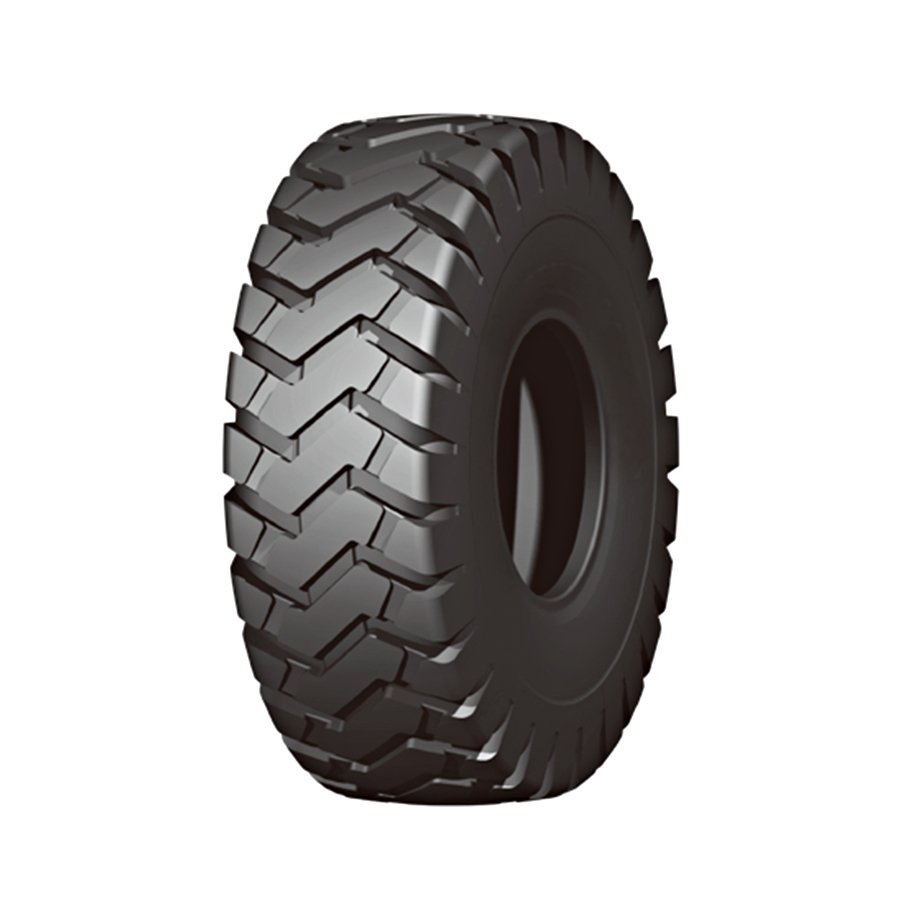

AX308 E-3L-3
Product introduction：
Pattern name: AX308
Pattern model: E-3/L-3 BIAS
Purpose: Loader and earthmover
Product Details
1.Heavy tire casing offers strength needed in a loader application.
2.Suitable for rocky or gravel surface in mines, quarries and construction sites.
3.Solid performance and maneuverability on wet, soft or muddy surface.
Product data
| Size | Ply rating | TRA code | Rim | Section width (mm)/inch | Overall diamater (mm)/inch | Tread depth (mm)/32nds | 10km/h | 50km/h | Type | |||||
| Load capacity (kg) | Inflation pressure (Kpa)/(psi) | Load capacity (kg) | Inflation Pressure (Kpa)/(psi) | |||||||||||
| 17.5-25 | 12 | E-3/L-3 | 14.00/1.5 | 445 | 17.5 | 1350 | 53.1 | 25.5 | 32.1 | 6150 | 350/51 | 3650 | 225/33 | TT |
| 23.5-25 | 16 | E-3/L-3 | 19.50/2.5 | 595 | 23.4 | 1615 | 63.6 | 31.5 | 39.7 | 9500 | 300/44 | 6150 | 225/33 | TT |
| 23.5-25 | 18 | E-3/L-3 | 19.50/2.5 | 595 | 23.4 | 1615 | 63.6 | 31.5 | 39.7 | 10500 | 350/51 | 6700 | 275/40 | TT |
