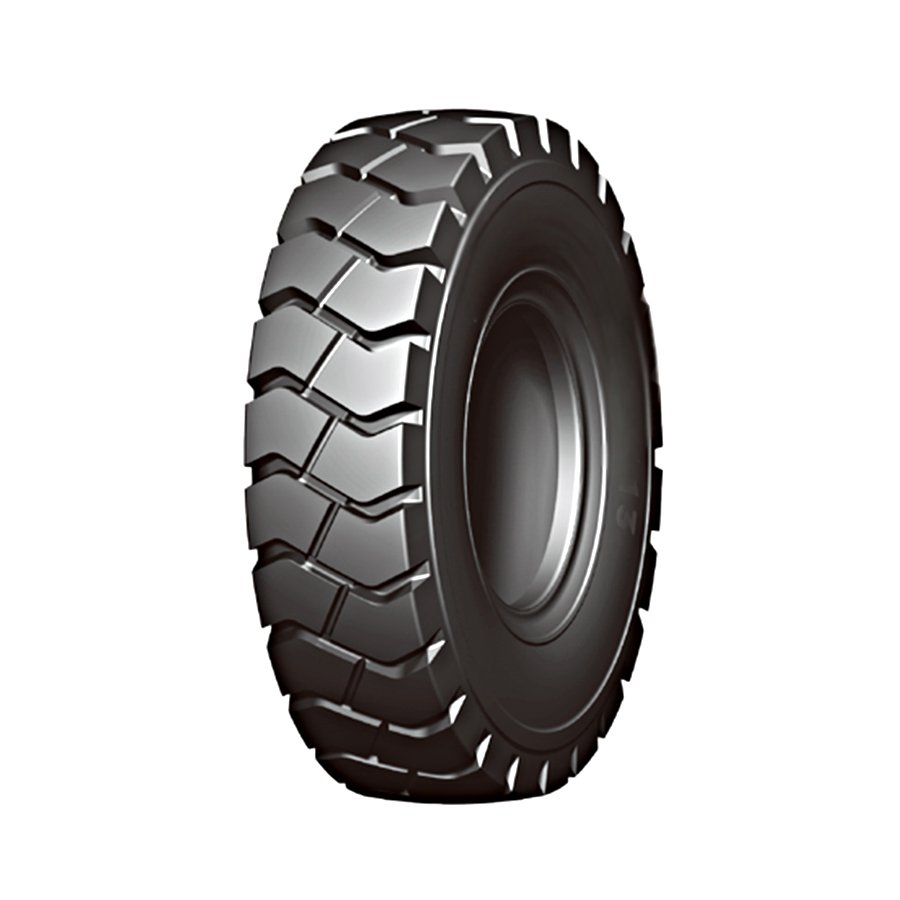

AX113
Product introduction：
Pattern name: AX113
Pattern model: BIAS
Purpose: Industrial
Product Details
1.Variable angled tread pattern reduces stone retention.
2.Industrial application compound and construction, strong resistance to punture and sidewall damage.
3.Enhanced sidewall ensures high safety.
4.Deepened tread and block texture with strong grip for industrial vehicles.
Product data
| Parameter table | ||||||||||||
| Size | Ply rating | Load capacity (kg) | Inflation pressure (Kpa)/(psi) | Section width (mm)/inch | Overall diamater (mm)/inch | Tread depth (mm)/32nds | Tyre | Rim | ||||
| 6.50-10NHS | 10 | 1655 | 790 | 115 | 175 | 6.9 | 590 | 23.2 | 14 | 17.6 | TT | 5.00F |
| 28×9-15NHS(8.15-15) | 14 | 3050 | 970 | 141 | 220 | 8.7 | 710 | 28.0 | 16 | 20.2 | TT | 7 |
