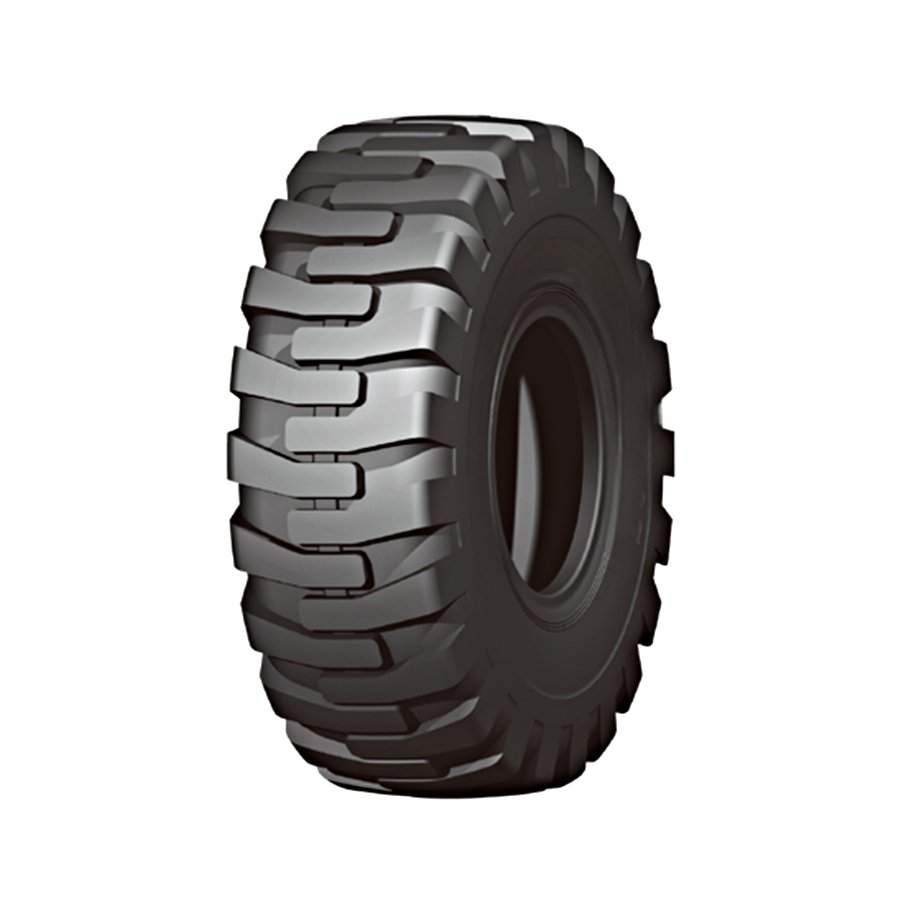

AX203 G-2
Product introduction：
Pattern name: AX203
Pattern model: E-2/L-2 BIAS
Purpose: Grader
Product Details
1.Precision angled bars maximize traction in soft soil.
2.Open shoulder grooves are self-cleaning for excellent traction and less slipping
3.Directional tread pattern for excellent power transfer in forward operation.
Product data
| Size | Ply rating | TRA code | Rim | Section width (mm)/inch | Overall diamater (mm)/inch | Tread depth (mm)/32nds | 10km/h | 50km/h | Type | |||||
| Load capacity (kg) | Inflation pressure (Kpa)/(psi) | Load capacity (kg) | Inflation pressure (Kpa)/(psi) | |||||||||||
| 15.5-25 | 12 | E-2/L-2 | 12.00/1.3 | 395 | 15.6 | 1275 | 50.2 | 24 | 30.2 | 5600 | 400/58 | 3250 | 250/36 | TL |
| 17.5-25 | 12 | E-2/L-2 | 14.00/1.5 | 445 | 17.5 | 1350 | 53.1 | 25.5 | 32.1 | 6150 | 350/51 | 3650 | 225/33 | TT/TL |
| 17.5-25 | 16 | E-2/L-2 | 14.00/1.5 | 445 | 17.5 | 1350 | 53.1 | 25.5 | 32.1 | 7300 | 475/69 | 4250 | 300/44 | TT/TL |
| 20.5-25 | 16 | E-2/L-2 | 17.00/2.0 | 520 | 20.5 | 1490 | 58.7 | 28.5 | 35.9 | 8250 | 350/50 | 5450 | 275/40 | TL |
| 23.5-25 | 18 | E-2/L-2 | 19.50/2.5 | 595 | 23.4 | 1615 | 63.6 | 31.5 | 39.7 | 9500 | 300/44 | 6150 | 225/33 | TT/TL |
| 23.5-25 | 20 | E-2/L-2 | 19.50/2.5 | 595 | 23.4 | 1615 | 63.6 | 31.5 | 39.7 | 10900 | 375/54 | 7300 | 300/44 | TT |
| 23.5-25 | 24 | E-2/L-2 | 19.50/2.5 | 595 | 23.4 | 1615 | 63.6 | 31.5 | 39.7 | 12500 | 475/69 | 8000 | 350/51 | TT |
